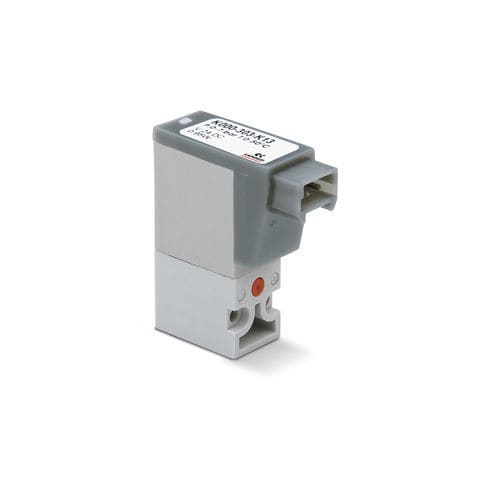

Medical valve series K
solenoid

medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
solenoid

Description

2/2-way - Normally Closed (NC) 3/2-way - Normally Closed (NC) and Normally Open (NO) The Series K direct acting solenoid valves can be mounted on single sub-bases or manifolds. Thanks to the same mounting pad 2/2-way and 3/2-way versions can be installed on the same manifold. The manual override is available only for the 3/2-way versions. Function 2/2 NC - 3/2 NC - 3/2 NO Operation direct acting poppet type Pneumatic connections on subbase Orifice diameter 0.6 ... 1 mm Flow efficient kv (l/min) 0.12 ... 0.30 Operating pressure 0 ÷ 3 ... 7 bar Operating temperature 0 ÷ 50 °C Media filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas Response time (ISO 12238) ON <10 ms – OFF <10 ms Installation monostable - only for 3/2 versions in any position MATERIALS IN CONTACT WITH THE MEDIUM - Body PBT Seals NBR - FKM Internal parts stainless steel ELECTRICAL FEATURES - Voltage 6 ... 24 V DC - other voltages on demand Voltage tolerance ±10% Power consumption 1 W Duty cycle ED 100% Electrical connection connector mod. 121-8... - 300 mm flying leads Protection class IP50
