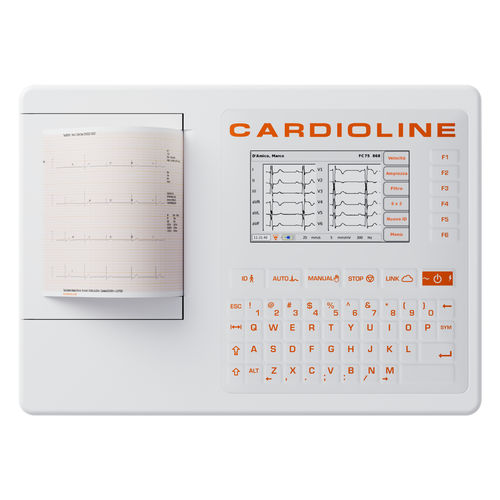

Resting electrocardiograph ECG100+

12-channel15-channeldigital

ECG100+ is a 12-lead diagnostic resting electrocardiograph (+ 3 Frank leads) which displays, acquires, prints and stores ECG traces for adults and children. USB, LAN and WiFi connectivity (optional). Export formats and protocols are available: SCP-PDF (standard), XMLGDT (included in the Standard Connectivity option), DICOM (included in the DICOM Connectivity option) and HL7 (optional) to interface with all common management. The device runs on battery or mains power. Print formats supported: Standard or Cabrera 3, 3 + 1, 3 + 3 or 6 channels in automatic mode and 3 or 6 channels of rhythm strip printing. With the Glasgow interpretation algorithm (optional), it is possible to have a complete interpretation of the ECG in short or extended format, including neonatal, pediatric and the recognition of acute myocardial infarction with ST elevation. Further information on the interpretation algorithm is available in the instruction manual.
