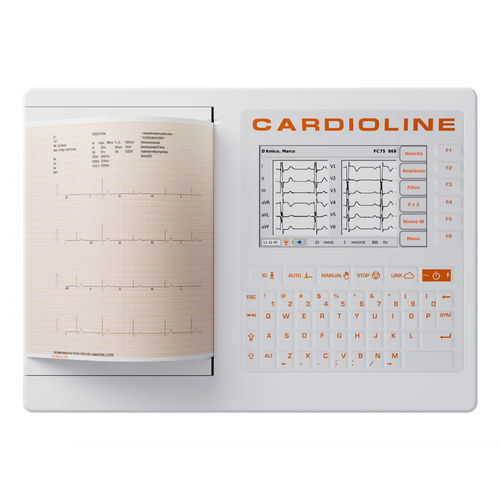

Resting electrocardiograph ECG200S

12-channel15-channeldigital

ECG200S is a 12-lead (+ 3 Frank) diagnostic resting electrocardiograph which displays, acquires, prints and stores ECG traces for adults and children. The device is equipped with USB, LAN (optional) and WiFi (optional) connectivity for the transmission of exams to the Cardioline ECG WebApp platform, a web system for centralized management and reporting of ECG exams. Export formats: SCP-PDF. ECG200S runs on battery or mains power. Print formats supported: Standard or Cabrera 3, 3 + 1, 3 + 3, 6 or 12 channels in automatic mode and 3, 6 or 12 channels of rhythm strip printing. With the Glasgow interpretation algorithm (optional), it is possible to have a complete interpretation of the ECG in short or extended format, including neonatal, pediatric and the recognition of acute myocardial infarction with ST elevation. Further information on the interpretation algorithm is available in the instruction manual.
