Spine surgery orthopedic extension device Merivaara™

Overview

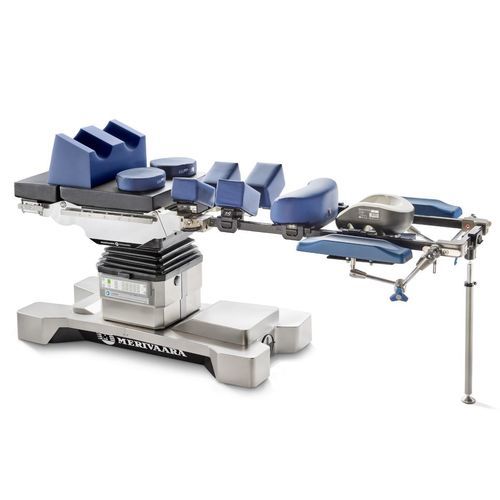

The CS Carbon Spine Extension Set CSM2930 – Merivaara is an attachable carbon-fibre extension for the Merivaara Grand Promerix operating table. It extends patient support and provides imaging access comparable to a specialist dual-rail spine table while allowing rapid conversion back to the standard table configuration.

Key features

• Quick installation and removal to return the table to standard use
• Unobstructed anaesthetic access with no end columns between the anaesthetic team and the patient
• 360° C‑arm and O‑arm imaging access
• Cost‑effective alternative to a dedicated spine table
• Detachable support leg for optional additional stability
• Lightweight design — single operator setup
• Maximum patient load: 250 kg

Components
Image | Product Code | Product Name | Quantity
CSM2930 | CSM2930 | CS Carbon Spine Extension Set - Merivaara™ (Set) | 1
CSM2730 | CSM2730 | CS Carbon Spine Extension Frame | 1
CSM2737 | CSM2737 | CS Carbon Spine Extension Leg | 1
CSM2742 | CSM2742 | CS Carbon Spine Extension Adaptor - Merivaara | 1

Technical specifications

• CSM-2730 - CS Carbon Spine Extension Frame: Length: 1250 mm / 49.21" | Width: 540 mm / 21.26" | Height: 64 mm / 2.52"
• CSM-2737 - CS Carbon Spine Extension Leg: Length: 80 mm / 3.15" | Width: 120 mm / 4.72" | Height: 1200 mm / 47.24" (minimum height 750 mm)
• CSM-2742 - CS Carbon Spine Extension Adaptor - Merivaara: Length: 180 mm / 7" | Width: 540 mm / 21.26" | Height: 75 mm / 3"
