Spine surgery orthopedic extension device Schmitz™

Product overview

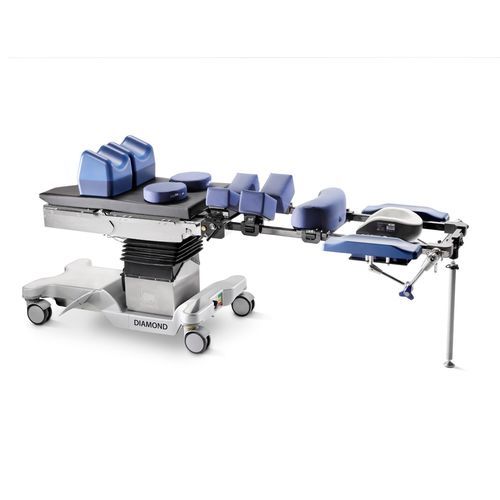

The CS Carbon Spine Extension – Schmitz™ attaches to the Schmitz Diamond Operating Table to provide patient positioning and imaging access comparable to a specialist dual-rail spine table. It is a lightweight, detachable extension designed for easy installation and one-person setup.

Key benefits

• Improved workflow: remove the extension quickly to return the table to standard use
• Better anaesthetic access: no end columns between the anaesthetic team and the patient
• 360° C‑Arm / 0‑Arm imaging access
• Cost-effective alternative to purchasing a full spine table
• Optional detachable support leg for additional stability
• Lightweight design — one person required to set up
• 250 kg maximum patient weight capacity

Components (product set and part breakdown)
Image | Product Code | Product Name | Quantity
-- | CSM2932 | CS Carbon Spine Extension - Schmitz™ (Set) | 1
-- | CSM2730 | CS Carbon Spine Extension Frame | 1
-- | CSM2737 | CS Carbon Spine Extension Leg | 1
-- | CSM2953 | CS Carbon Spine Extension Adaptor - Schmitz | 1

Further product information
The CS Carbon Spine Extension – Schmitz™ provides a patient position and imaging capability comparable to a dual-rail spine table when fitted to the Schmitz Diamond Operating Table. A product setup video is available.

Available resources

• Data Sheet CSM-2932 CS Carbon Spine Extension - Schmitz (PDF)
• CSM2932 CS Carbon Spine Extension - Schmitz IFU v2 (PDF)
• CS Carbon Spine Extension - Schmitz Product Sheet (PDF)

Technical specifications

• Compatible with Schmitz Diamond Operating Table
• Imaging access comparable to a dual-rail spine table
• 360° C‑Arm / 0‑Arm access
• Optional detachable support leg
• Lightweight design for one-person setup
• Maximum patient weight: 250 kg
• Sold as a set (CSM2932) including frame (CSM2730), leg (CSM2737) and adaptor (CSM2953)
