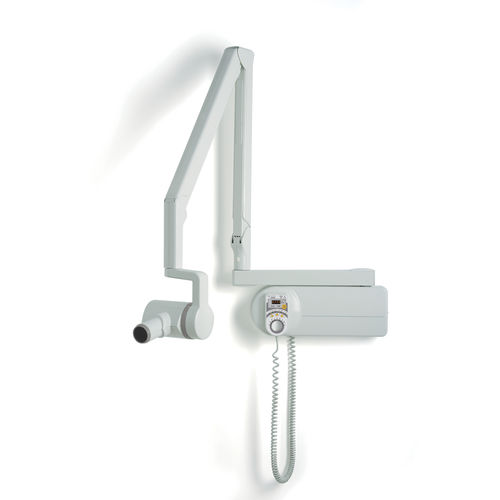

Digital intraoral X-ray system CS 2200

wall-mounted60 kV0,7 mm

Overview
The CS 2200 is an intraoral X-ray system designed to maximize diagnostic performance and streamline clinical workflow with an intuitive, compact interface. It integrates a high-frequency (DC) X‑ray generator to provide consistent image quality and is engineered to support safer image acquisition.

Versatile design
The CS 2200 supports both film and digital imaging and is offered with multiple configuration options to adapt to varied clinic layouts and workflows.

• Compatibility with film and digital detectors
• Five mounting options
• Two timer types available
• Three arm-length options

Usability
The system features a compact, handheld pre-programmed timer that enables rapid selection of exposure settings. The timer automatically calculates exposure based on anatomical region, patient bodyweight and detector type, reducing setup time and user errors.

• Handheld, pre-programmed timer
• Automatic exposure calculation by anatomical region
• Exposure adjustment based on patient bodyweight and detector type

Imaging performance and safety
The high-frequency (DC) generator delivers reproducible diagnostic images with optimized contrast and definition. The CS 2200 is designed to improve safety during acquisition and can contribute to dose reduction compared with conventional generators.

Technical specifications

• Generator type: high-frequency (DC)
• Rated voltage: 60 kV (typical configuration)
• Focal spot: 0.7 mm (typical)
• Compatible with film and digital imaging workflows
• Five mounting options; three arm lengths
• Two timer types, including a handheld pre-programmed timer
• Handheld timer auto-calculates exposure by anatomical region, patient bodyweight and detector type
• Compact, user-oriented design for intraoral applications
