Gynecological examination chair FMV2-70-125

electricfoot-operatedTrendelenburg

Overview

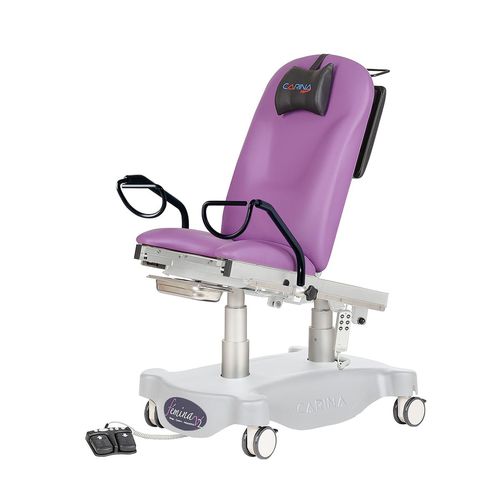

Electric 2-section gynaecological chair from the FEMINA V2 range, width 70 cm. Fully electric: height adjustable from 50 to 90 cm, electrically adjustable backrest and seat. Supplied as standard with a multifunction hand remote and pedal. Upholstery is a stretched ergonomic design, total thickness 8 cm including 2 cm visco‑elastic memory foam; fire retardant class M1. Mobility via 4 castors Ø 125 mm with brakes; optional 4 castors Ø 150 mm with central brake system available. Trendelenburg function enables rapid emergency positioning. Supplied with a pair of stirrups and clamps, a pair of DIN rails (2.5 x 1 cm), shaped ergonomic headrest and a paper roll holder on the head side (behind the backrest). Delivered with a shaped base in light grey (RAL 7035). Ref.: FMV2-70-125.

Range and reference
Range: FEMINA V2 — Reference: FMV2-70-125

Upholstery - Standard colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone
• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours

• Standard: RAL 7035 (light grey)

Optional base colours (RAL)

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Accessories included as standard

• Paper roll holder on the head side
• Pair of stirrups
• Stainless steel drawer
• Pair of DIN rails (2.5 x 1 cm)
• Ergonomic shaped headrest
• Wheels Ø 125 mm with brakes

Related accessories (examples)

• Blood test splint (ACC 110)
• Polyurethane blood test splint (ACC 110POLY)
• Battery, capacity 20 cycles (ACC BATTERIE01)
• Base cover in a different colour (ACC-CAPOT)
• Coloscope holder (ACC FEMINA01)
• 4 skids instead of wheels (ACC-FIXE)
• OVALIA / FEMINA pedal (ACC-OVALIA03)
• Removable legrest with support for width 70 cm (ACC FEMINA05-V2)

Technical specifications

• Range: FEMINA V2
• Reference: FMV2-70-125
• Width: 70 cm
• Height: Electric adjustment from 50 to 90 cm
• Type of control: Multifunction hand remote and pedal
• Upholstery thickness: 8 cm (including 2 cm visco‑elastic memory foam)
• Coating: Fire retardant class M1
• Load capacity: 200 kg
• Mobility: 4 wheels Ø 125 mm with brakes (standard); optional 4 wheels Ø 150 mm with central brake system available
• Trendelenburg function to reach emergency position
• Standard supplied accessories: paper roll holder (head side), pair of stirrups, stainless steel drawer, pair of DIN rails 2.5 x 1 cm, ergonomic headrest
• Base: shaped base in light grey (RAL 7035) for easy cleaning
• Design: stretched ergonomic upholstery adapted for gynaecological position
• Certification / origin: CE marked; French made
