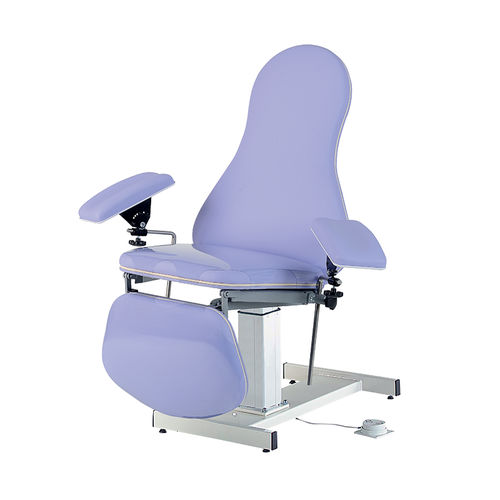

Phlebotomy blood donor chair LUVIA08T

electricTrendelenburgheight-adjustable

Overview
Electric blood sampling chair designed for patient comfort and practitioner ergonomics. Narrow central base allows close access for the clinician and facilitates daily cleaning. Stretched upholstery, 8 cm thickness, fire retardant class M1. Supplied with a pair of adjustable armrests with mechanical locking blood test splints. Backrest and legrest synchronised via a gas ram, controlled by a bilateral manual handle. Plastic protections for seat and legrest supplied as standard. Electric height adjustment from 55 to 75 cm via pedal. Fully reclining position available; backwards-tilted seat enables emergency/Trendelenburg positioning. Painted steel base, finish selectable in RAL colours.

Range and reference
LUVIA range. Ref.: LUVIA08T

Upholstery colours
Standard colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Optional colours

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7035
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Product Features
Height (cm): Electric adjustment from 55 to 75 cm
Control: Pedal
Width: 55 cm
Upholstery thickness: 8 cm (stretched upholstery)
Coating: Fire retardant class M1
Load capacity: 130 kg
Standard accessories: Pair of blood test splints; plastic protections for seat and legrest
Height adjustment: Electric
Number of sections: 3 sections
Backrest adjustment: Synchronised backrest and legrest via gas ram and bilateral manual handle
Rotation: Non-rotating

Technical specifications

• Range: LUVIA
• Model reference: LUVIA08T
• Electric height adjustable from 55 to 75 cm (pedal control)
• Chair width: 55 cm
• Upholstery thickness: 8 cm (stretched upholstery)
• Upholstery coating: Fire retardant, M1 class
• Load capacity: 130 kg
• Number of sections: 3
• Backrest and legrest: Synchronised adjustment via gas ram and bilateral manual handle
• Rotation: Non-rotating
• Standard accessories: Pair of blood test splints; plastic protections for seat and legrest
• Base: Painted steel base (available in various colours)
• Seat can tilt backwards to place patient in emergency position
