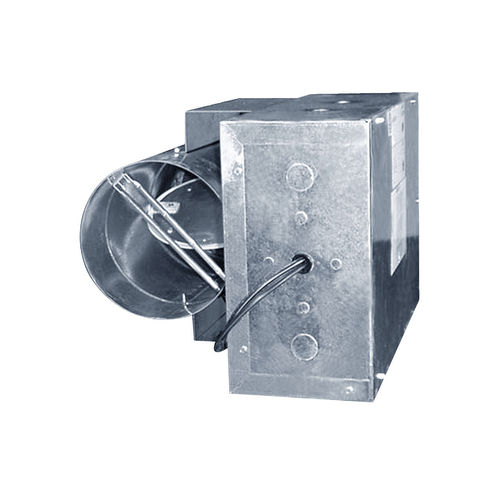

Duct fan coil unit AXIS™ 35K

The 35K VAV bypass terminal is designed to maintain optimum occupant comfort by varying the amount of cold air supplied to a zone from a constant volume air handler. The unit’s small size ensures an easy fit in all applications. Performance Features Airflow capacities from 200 to 4400 cfm Round inlet sizes from 6 in. through 18 in. diameter Rectangular inlet on size 22 20 gauge, galvanized steel casing construction Single-blade design results in fewer parts Manual discharge damper with no spring loaded parts Unit casing lined with ½ in. thick, 1½ lb dual density fiberglass Low pressure drop Reliability Features Insulation meets UL-181 and NFPA-90A requirements Maintenance Features Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data Installation Features Side bypass discharge for easy access to balancing dampers Factory-installed controls All round collars accommodate standard spiral and flex duct sizes Options Factory-Installed Options Control options: Analog controls Pneumatic controls Hanger brackets Field-Installed Accessories Manual inlet damper
