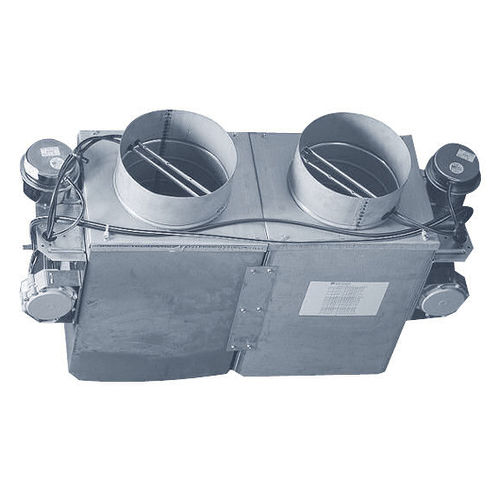

Duct fan coil unit AXIS™ 35N

The 35N units offer a compact design with diverse control packages. The 35N dual-duct terminals are designed to maintain optimum temperatures in the conditioned zone by varying the air volume supplied by hot and cold supply ducts while providing the proper discharge air temperature. Airflow capacities from 50 to 3.700 cfm Round inlet sizes from 4 in. through 16 in. diameter 22 gage, galvanized steel casing construction Suitable for low, medium, or high pressure applications Linear, multiple-point, averaging velocity sensor with an amplified signal Damper blade has a flexible gasket for tight airflow shutoff Damper blade operates over a full 90 degrees All damper assemblies utilize a solid ½ in. shaft that rotates in self-lubricating Delrin® bearings Pressure independent controls include Carrier Comfort Network® (CCN), analog, and pneumatic controls Unit casing lined with ½ in. thick, 1-1/2 lb dual density fiberglass insulation Multiple casing liners available Certified performance in accordance with ARI Standard 880 Casings and insulation meet UL-181 and NFPA-90A requirements Maintenance Features Available 6 in. x 9 in. bottom access panel for easy accessibility during routine inspections and maintenance Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data Rectangular discharge with slip and drive connections provides quick and easy connection to downstream ductwork Compact unit casing accommodates installation in reduced ceiling plenum space Factory-installed controls All round collars accommodate standard spiral and flex duct sizes Balancing taps provided for easy airflow verification
