Conical dental implant 2005

titaniumballscrew

Product information

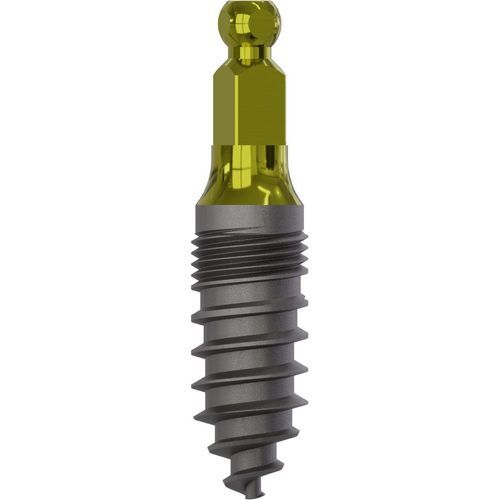

Champions Ball-head implant, one-piece screw implant for bone-level insertion. Available diameters: 2.5 mm, 3.0 mm and 4.0 mm. Available lengths: 8 mm / 10 mm / 12 mm / 14 mm / 16 mm. This reference: diameter 4.0 mm, length 10 mm. Material: Titanium Grade 4 (CP-Ti). Indicated for late implantation, delayed insertion (6–8 weeks after extraction) and, under specific conditions, immediate implantation. Suitable for retention of removable prostheses in maxilla and mandible (bone qualities D1–D4). Minimum abutments per quadrant: maxilla ≥ 3, mandible ≥ 2.

Clinical indications

• Late implantation (healed alveolus)
• Delayed insertion: 6–8 weeks after extraction
• Possible immediate implantation under appropriate conditions
• Fixation of removable overdentures in D1–D4 bone qualities

Technical data
Diameter: 4.0 mm
Length: 10.0 mm

Product features

• Material: Titanium Grade 4 (CP-Ti)
• Implant type: one-piece screw implant, bone-level insertion
• Available diameters: 2.5 mm / 3.0 mm / 4.0 mm
• Available lengths: 8 mm / 10 mm / 12 mm / 14 mm / 16 mm
• Indications: late, delayed, possible immediate implantation
• Applicable bone qualities: D1–D4 (maxilla and mandible)
• Minimum pillars per quadrant: maxilla ≥ 3, mandible ≥ 2
• Suitable for fixation of removable prostheses
• Reference for this item: diameter 4.0 mm, length 10.0 mm
• SKU: 2005
