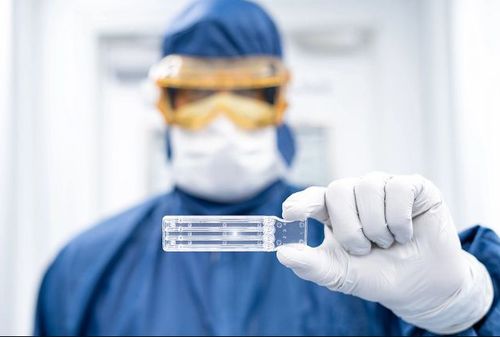

Microfluidic cartridge for biomedical applications Endosafe® Trillium™ rCR

for laboratorysingle use

Product summary
The animal-free Endosafe® Trillium™ rCR cartridges use an optimized kinetic chromogenic recombinant cascade reagent (rCR) developed to simulate the Limulus polyphemus LAL reaction. They provide an automated solution for quantitative bacterial endotoxin testing compatible with Endosafe cartridge platforms, delivering results in approximately 15 minutes.

Key benefits

• Animal-free recombinant cascade reagent (rCR) formulated to reproduce the LAL enzymatic cascade
• Minimizes manual pipetting, dilution and reconstitution steps to reduce consumable use and reagent waste
• Removes risk of 1,3-β-D-glucan–induced false positives
• Integrates with Endosafe cartridge instruments and supports archived standard curve use to reduce operator error
• Provides rapid quantitative kinetic chromogenic readouts (~15 minutes)

Performance and sensitivity

• Available quantitative ranges: 0.5–0.005 EU/mL; 1–0.01 EU/mL; 5–0.05 EU/mL
• Multiple cartridge sensitivities available to match sample matrix, specified endotoxin limits and dilution/interference needs

Cartridge functionality

• Four reservoirs per cartridge: duplicate sample and spike channels for automatic duplicate runs as required by BET protocols
• Instrument draws and mixes sample with rCR reagent in sample channels
• Spike channels mix sample with rCR reagent and positive control for recovery checks
• Each sample is combined with chromogenic substrate and transferred to an optical cell for incubation and measurement
• Optical cells allow instrument measurement of color intensity and kinetic reaction time
• Measured reaction times are compared to an archived standard curve to calculate endotoxin concentration

Documentation and validation
Technical and validation documentation describe primary alternate method validation and beta study results demonstrating equivalency to licensed kinetic LAL assays. A validation support package includes protocols, a primary validation summary report and guidance for alternative method validation and interference screening.

Product Codes and Ordering Information
Multi-packs of 25 Trillium™ rCR cartridges (5/pouch) | Standard Curve Range: 1 to 0.01 EU/mL | RCRC5501
Multi-packs of 25 Trillium™ rCR cartridges (5/pouch) | Standard Curve Range: 5 to 0.05 EU/mL | RCRC5505
10 single packs of Trillium™ rCR cartridges | Standard Curve Range: 0.5 to 0.005 EU/mL | Inquire for Product Code
10 single packs of Trillium™ rCR cartridges | Standard Curve Range: 1 to 0.01 EU/mL | RCRC3001
10 single packs of Trillium™ rCR cartridges | Standard Curve Range: 5 to 0.05 EU/mL | RCRC3005
Documentation | Primary Validation Documentation performed on Trillium™ rCR Cartridges | VALRCR3200
Contract Testing Services | One Sample Interference Screen | TSRCR3500
Contract Testing Services | One Batch Product Specificity, includes interference screen | TSRCR3601
Contract Testing Services | Three Batch Product Specificity, includes interference screen | TSRCR3603
Contract Testing Services | One Batch Precision and Accuracy | TSRCR3800

Additional notes
Cartridges are designed to reduce training and consumable burden and to act as direct replacements for traditional LAL cartridges without additional equipment or reagent changes. Use is supported by technical guidance, validation documentation and optional services for interference screening and product-specific validation.

Technical specifications

• Commercial name: Endosafe® Trillium™ rCR Cartridges
• Technology: Kinetic chromogenic recombinant cascade reagent (rCR); 3-factor enzymatic cascade simulating Limulus polyphemus reaction
• Result time: Approximately 15 minutes (kinetic chromogenic)
• Quantitative ranges: 0.5–0.005 EU/mL; 1–0.01 EU/mL; 5–0.05 EU/mL
• Packaging options and product codes: RCRC5501, RCRC5505, RCRC3001, RCRC3005; documentation VALRCR3200
• Contract testing/service codes: TSRCR3500, TSRCR3601, TSRCR3603, TSRCR3800
• Storage: Store cartridges at 2–25° C; keep pouch sealed until use; if pouch contains multiple cartridges keep sealed between uses
• Compatibility: Designed for Endosafe cartridge platforms (nexgen-PTS, nexgen-MCS, Nexus 200); requires Nexgen software 11.1.1 or above for Trillium operation
• Packaging note: Multi-packs of 25 (5 per pouch) and 10 single packs available
• Designed benefits: Reduces β-glucan false positives, lowers consumable waste, enables archived standard curves to reduce human error
