High-definition spinalscope

bentwith working channel

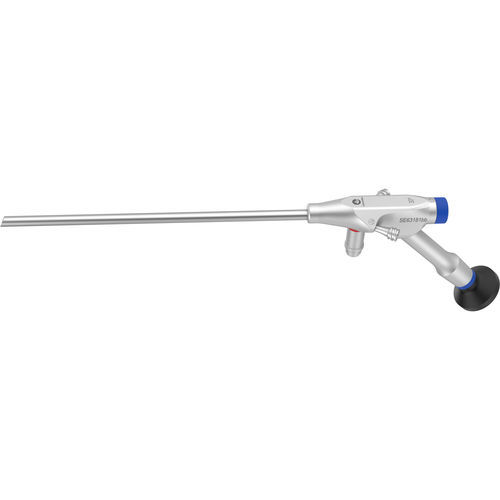

Transforaminal Endoscope The rigid endoscopes are for transformanimal approached spine surgery. The diameters of these endoscopes are 5.3, 6.3, and 6.9 mm, with instrument channels of 2.8, 3.7, and 4.3 mm， and an approximate working length of 181 mm. They all come in direction of view 30°. Product Advantage Features of the product: ● 2 irrigation channels and 1 instrument channel ● Flow control valve can be selected as needed ● Multiple coating treatment on lenses for a large depth of field and high resolution ● Sapphire protective lenses for scratch resistance ● Imported lighting fiber for uniform brightness and natural color ● Ergonomic design for easy use and comfortable grip Product Uses For observation and surgery of the spinal intervertebral foramen. Product Operate Guide ● Sapphire mirror surface for scratch resistance and durability. ● Imported fiber optic lighting for uniform illumination. ● High-resolution optical imaging system design for clearer ultra-high-definition images. ● High-quality multi-coated (anti-reflective) optical system with imported optical glass for optimal color rendering, realistic colors, and lifelike images. ● Equipped with two irrigation channels and one instrument channel, flow control valve can be selected as needed. Technical Parameters ● Diameter: 5.3 mm, 6.3 mm, and 6.9 mm ● Mini. Instrument Channel: 2.8 mm, 3.7 mm, and 4.3 mm ● Direction of View: 30° ● Working length: 181 mm ● Sterilization with low-temperature plasma or immersion disinfection.
