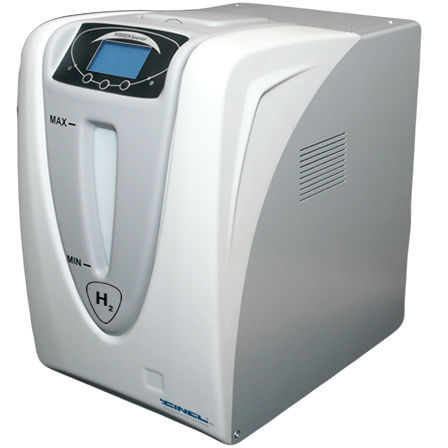

Hydrogen generator RC series

laboratorymedicalcompact

The new RC series (Regenerable Cartridge) hydrogen generator combines high performance with competitive price. The RC series has double desiccant cartridge columns with huge capacity that limit the frequency of the operations for the maintenance of the desiccant cartridge. A programmed alarm advises the user for the intervention. The cartridge can be also replaced by a new one immediately without any waste of working time. TANK CAPACITY 5 liters WATER LEVEL Showed by graphic display and visible INPUT VOLTAGE 110 or 230 V – 50 or 60 Hz WEIGHT - 25 – 35 kg POWER CONSUMPTION 80 – 225 Watt PRESSURE ACCURACY 0.1 bar (± 0.5 %) MICROPROCESSOR CONTROLLED DISPLAY - Graphic display, 128 x 64 px INDEX OF PROTECTION - IP2 TEMPERATURE +5°C to +35°C RELATIVE HUMIDITY - 0-80%, non condensing OUTPUT PORT - 1/8” CASE DIMENSIONS - 25x42x35 cm (WxDxH)
