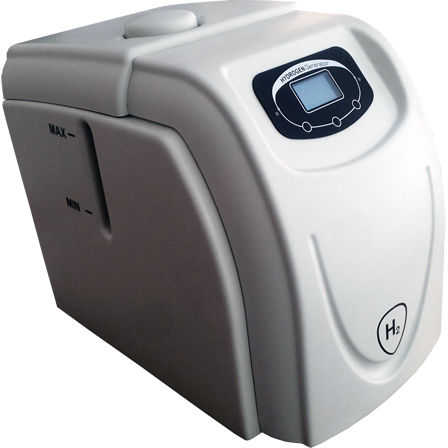

Hydrogen generator AD series
humiditylaboratorymedical

hydrogen generator
hydrogen generator
Add to favorites
Compare this product


Characteristics

Gas type
hydrogen, humidity
Applications
laboratory, medical
Configuration
compact
Technology
PEM
Output

Min.: 100 l/min (26 us gal/min)

Max.: 1,000 l/min (264 us gal/min)

Description

The new AD series (Automatic Dryer System) hydrogen generator does not need maintenance because the gas purifying system regenerates cyclically, any maintenance of desiccant cartridge is not required. The standard maintenance operations only include the periodical filling of the internal tank with deionized water. The tank’s high capacity of 10 l greatly reduces the frequency of this operation. The efficiency of the system is one of the best in the world for this kind of technology. OUTLET PRESSURE from 1 to 11 bar (14 psi to 160 psi) STANDARD PURITY >99,99999% AVAILABLE FLOW RATES RANGE 100-180-220-260-300-500-600-700-800-900-1000 cc/min TANK CAPACITY - 10 liters WATER LEVEL - Showed by graphic display and visible INPUT VOLTAGE - 110 or 230 V – 50 or 60 Hz WEIGHT - 30 – 40 kg POWER CONSUMPTION - 80 – 380 Watt PRESSURE ACCURACY - 0.1 bar (± 0.5 %) MICROPROCESSOR CONTROLLED DISPLAY - Graphic display, 128 x 64 px INDEX OF PROTECTION - IP2 TEMPERATURE - +5°C to +35°C RELATIVE HUMIDITY - 0-80%, non condensing OUTPUT PORT - 1/8” CASE DIMENSIONS - 34x43x50 cm (WxDxH) CINEL s.r.l. Gas Generators Technology has developed a new high purity hydrogen generator (>99,99999%) that is perfect for laboratory use since it allows to eliminate the safety problems caused by traditional bottles. This new system uses PEM technology for the production of very pure hydrogen which is based on the innovative conception of the electrolytic cell that Cinel has developed together with the University of Padua’s Chemical Science Department and for which has received the ITALIAN PATENT N. 0001397254 and the EUROPEAN PATENT Application Number EP10814714.1.
