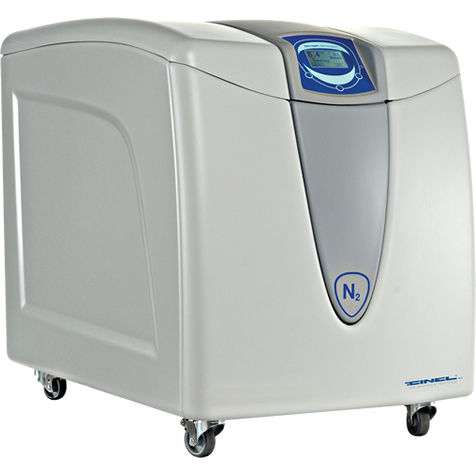

Nitrogen generator ZEFIRO QSdry airhumidityfor LC/MS
Add to favorites
Compare this product
Characteristics
- Gas type
- nitrogen, dry air, humidity
- Applications
- for LC/MS
- Configuration
- mobile
- Technology
- membrane
- Output
18 l/min, 70 l/min
(4.7551 us gal/min, 18.492 us gal/min)- Output pressure
5.5 bar, 7.2 bar
(79.77 psi, 104.43 psi)- Gas purity
99 %
- Rated capacity
1,900 W
(2.6 hp)
Description
ZEFIRO QS Nitrogen Generator is specifically designed to
supply Nitrogen & Dry Air for all the Perkin Elmer that need Nitrogen & Air. The
Nitrogen generator uses membrane Technology to produce nitrogen gas at
specific purity required.
The internal oil free air compressor which is firstly pre filtered provide also
to the exhaust air flow which is treated by a drying filter.
INPUT VOLTAGE - 230 V – 50/60 Hz
PRESSURE ACCURACY - 0.1 bar (± 0.5 %)
MICROPROCESSOR CONTROLLED DISPLAY - Graphic display, 128 x 64 px
INDEX OF PROTECTION - IP20
TEMPERATURE - 5°C to +30°C
RELATIVE HUMIDITY - 0-80%, non condensing
SOUND PRESSURE LEVEL - 55 dB(A)
OUTPUT PORTS - N° 02 G 1/4
CASE DIMENSIONS - width 48 cm, height 70 cm, length 84 cm
* STP: Standard Temparature and Pressure (20°C, 1 atm)
