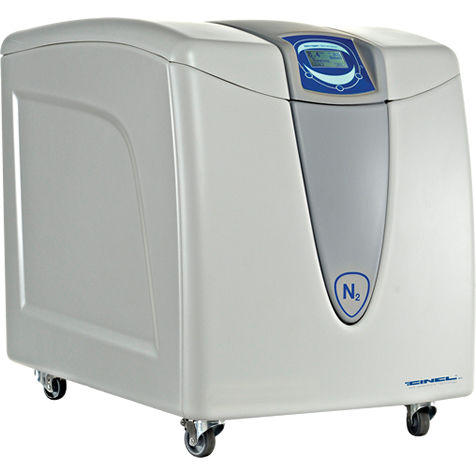

Nitrogen generator ZEFIRO Qairfor LC/MSmobile
Add to favorites
Compare this product
Characteristics
- Gas type
- nitrogen, air
- Applications
- for LC/MS
- Configuration
- mobile
- Technology
- membrane
- Output
32 l/min, 50 l/min
(8.4535 us gal/min, 13.2086 us gal/min)- Output pressure
5.5 bar
(79.77 psi)- Gas purity
99 %
- Rated capacity
1,900 W
(2.6 hp)
Description
ZEFIRO Q Nitrogen Generator is specifically designed to
supply Nitrogen & Dry Air for all the Bruker LC/MS that need Nitrogen & Air. The
Nitrogen generator uses membrane Technology to produce nitrogen gas at
specific purity required.
The internal oil free air compressor which is firstly pre filtered provide also
to the exhaust air flow which is treated by a drying filter.
INPUT VOLTAGE - 230 V – 50/60 Hz
WEIGHT - 130 Kg
PRESSURE ACCURACY - 0.1 bar (± 0.5 %)
MICROPROCESSOR CONTROLLED DISPLAY - Graphic display, 128 x 64 px
INDEX OF PROTECTION - IP20
TEMPERATURE - 5°C to +30°C
RELATIVE HUMIDITY - 0-80%, non condensing
SOUND PRESSURE LEVEL - 55 dB(A)
OUTPUT PORTS - N° 02 G 1/4
CASE DIMENSIONS - width 48 cm, height 70 cm, length 84 cm
