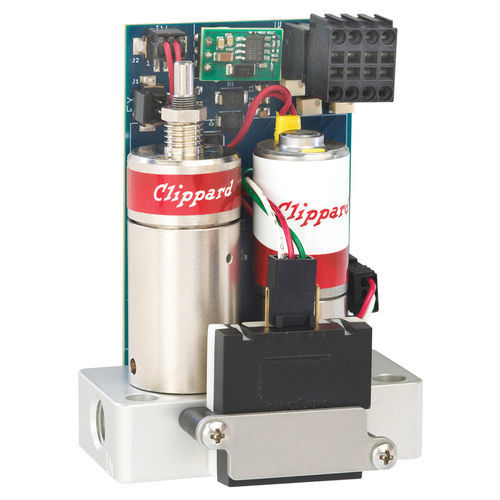

Pressure controller CFC

flowmass flowmedical

The Cordis Flow Controller utilizes an extremely fast-reacting MEMS technology sensor upstream from Clippard's proportional valve. Unlike other mass flow controllers, the Cordis flow controller requires less than one minute warm-up, features a pressure drop ≤14" H2O, and includes flow ranges as low as 0 to 30 sccm. Standard control options include 0.2 to 10 VDC, 4.32 to 20 mA, and 3.3 VDC Serial. IP65 housing available for light industrial applications. 50:1 turndown ratio Compact size and weight ≤14" H2O pressure drop <1 minute warm-up Multiple low flow ranges <50 ms response time ≤25 mV resolution Optional integrated regulator **Note - Please consult factory for current pricing 2D File - 2D File Accuracy - ≤2% of Full Scale Applications - Applications Form Current Draw - ≤250 mA max. Data Sheet - Data Sheet Filtration - 40 micron (recommended) Flow Range - Minimum: 0 to 15 sccm, Maximum: 0 to 6 l/min Function - Normally-Closed Proportional Hysteresis - ≤1% Linearity - ≤1% Material, Manifold - Anodized Aluminum Material, Sensor - Polyamide Max. Inlet - 60 psig (4 bar) Medium - Clean, Dry, Non-Corrosive Gases Mounting Attitude - Any Operating Instructions - Operating Instructions Operating Temperature Range - Proportional Valve: 32° to 120°F (0 to 49°C) Pressure Drop - ≤14" H2O Product Line Brochure - Cordis Electronic Controls Repeatability - ≤1% Resolution - ≤25 mV Response Time - <50 ms (application dependent) Turndown Ratio - 50:1 Voltage - 15 to 24 VDC Warm-Up Period - <1 Minute Weight (lbs.) - 0.4000
