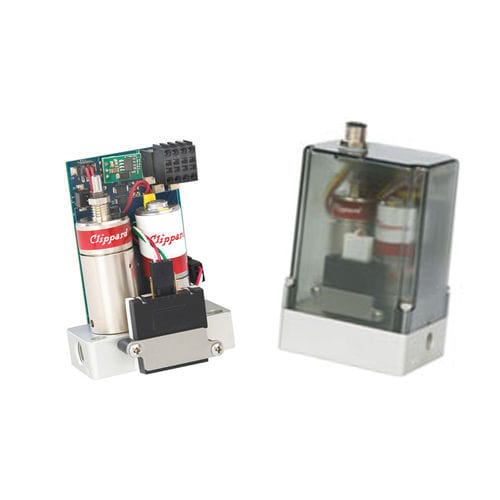

Flow controller CFC-CGR-AEE

pressuremass flowmedical

The Cordis Flow Controller utilizes an extremely fast-reacting MEMS technology sensor upstream from Clippard's proportional valve. Unlike other mass flow controllers, the Cordis flow controller requires less than one minute warm-up, features a pressure drop ≤14" H2O, and includes flow ranges as low as 0 to 30 sccm. Standard control options include 0.2 to 10 VDC, 4.32 to 20 mA, and 3.3 VDC Serial. IP65 housing available for light industrial applications. 50:1 turndown ratio Compact size and weight ≤14" H2O pressure drop <1 minute warm-up Multiple low flow ranges <50 ms response time ≤25 mV resolution Optional integrated regulator **Note - Please consult factory for current pricing 2D File - 2D File Accessories - 3.3 VDC Serial Cable: CPCH-C2, Power Cord, 6': CPCH-CA6, Actuation Cable, 8-Pin, 6': CPCH-C1 Accuracy - ≤2% of Full Scale Applications - Applications Form Calibrated Flow Range - 0 to 4 l/min Current Draw - ≤250 mA max. Data Sheet - Data Sheet Filtration - 40 micron (recommended) Flow Range - Minimum: 0 to 15 sccm, Maximum: 0 to 6 l/min Function - Normally-Closed Proportional Hysteresis - ≤1% Linearity - ≤1% Material, Manifold - Anodized Aluminum Material, Sensor - Polyamide Max. Inlet - 60 psig (4 bar)
