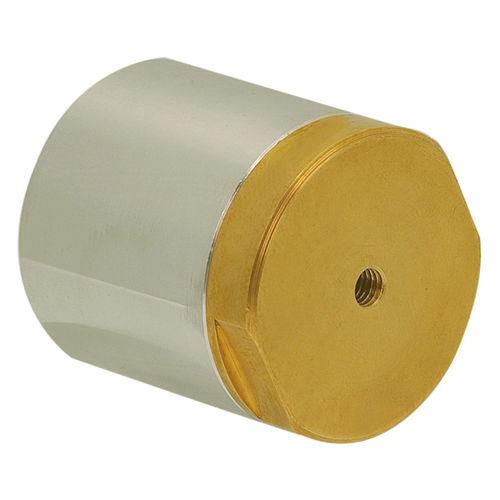

Medical valve MPA-10

Air Pilot Valve Actuators thread onto the tops of Clippard miniature 2-Way, 3-Way, and 4-Way valves to provide fast pilot actuation from a pneumatic signal. They permit wide circuit flexibility and minimize cost, hazards and complexity by allowing many control functions to be accomplished pneumatically. One of the most versatile items in the Clippard line Compatible with all Clippard MAV/MAVO, MJV/MJVO & FV Series valves Allow many control functions to be accomplished pneumatically Accessories - Actuator Spacer 12098-PKG Pkg. of 10, 12098-BLK Bulk Bore Size - 1 1/4" Input PSI - 150 psig max. Length - 1.656 Material, Body - Brass, Delrin Piston Material, Seals - Nitrile Material, Spring - Stainless Steel Max PSI - 150 psig Medium - Air Mount - #15/32-32 Female Thread Port, Inlet - #10-32 Unit - Imperial Weight (lbs.) - 0.0700
