valve for the medical industry / solenoid
R-301

{{requestButtons}}

Characteristics

  • Applications:

    for the medical industry

  • Other characteristics:

    solenoid

Description

Features:
• Indicator shows valve in shaded position
• Multiple porting speeds piping
• Micro gap construction - snap action and no blow by
• Balanced design allows speed control at exhausts

Performance:
Flow: 9 scfm @ 100 psig
Pilot Pressure Minimum: 40 psigs
Temperature: 32 to 180°F
Working Pressure: Vacuum to 150 psig;10.3 bars

Description:

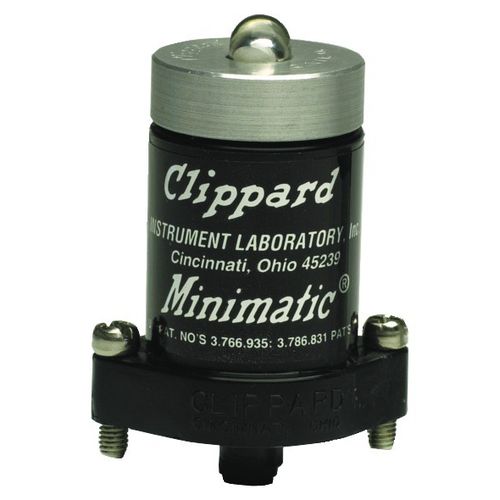

R-301 is a 3-way, spring return, fully ported, piloted valve. It can be used Normally-Open, Normally-Closed, as a diverter or as a selector. It can also be used as a 2-way valve by plugging the exhaust ports.
