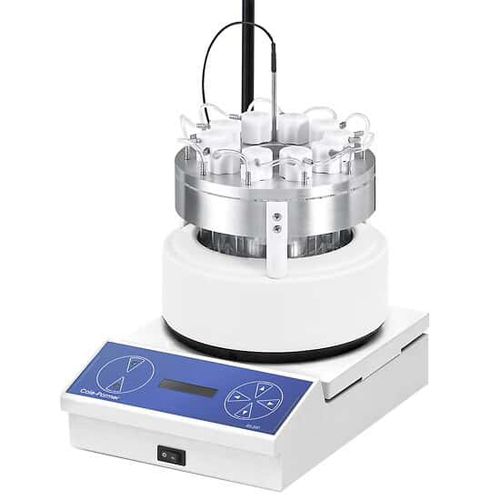

Stirred-tank reactor RS-200

laboratoryfor scientific researchmixing

Overview

• Run up to 10 reactions simultaneously
• Modular design accepts a variety of cartridges, blocks and glassware
• Maintain identical temperature and stirring rate at each position
• Set stirring speeds from 100 to 800 rpm
• Simple menus and touch-pad interface for rapid control
• Compact footprint fits under a fume hood
• Exterior remains cool to the touch for operator safety

Details
Perform parallel synthesis for up to 10 reactions with independent positions that share controlled heating and stirring. Interchangeable heating blocks, glassware and reflux heads accommodate sample volumes from 1 to 1000 mL. Heater cartridges are in-block style and support temperatures up to 220°C. Use the included temperature probe to achieve ±0.9°F (±0.5°C) accuracy. For sub-ambient operation, connect cooling plug 36630-71 and an external chiller to reach temperatures as low as –22°F (–30°C) without an ice bath. A central gas port combined with gas-tight PTFE caps enables vacuum or inert-gas environments.

Available configurations (summary)

• 10 openings — 230 VAC (SKU 3663001)
• 10 openings — 120 VAC (SKU 3663002)

Technical specifications

• Series: RS-200 Series
• Number of simultaneous reactions: up to 10 positions
• Compatible sample volumes: 1 to 1000 mL
• Heating: in-block heater cartridges, maximum temperature up to 220°C
• Temperature accuracy: ±0.9°F (±0.5°C) with included probe
• Cooling capability: with cooling plug 36630-71 and external chiller, down to –22°F (–30°C)
• Stirring speed range: 100 to 800 rpm (each position)
• Control interface: simple menus and touch pad
• Design: modular blocks; interchangeable heating blocks, glassware and reflux heads
• Gas handling: central gas port; compatible with gas-tight PTFE caps for vacuum or inert gas
• Safety: exterior remains cool to touch; compact footprint suitable for fume hood
• Power options: 230 VAC and 120 VAC variants available
