Behavioral research activity meter Hole Poke

for micefor rats

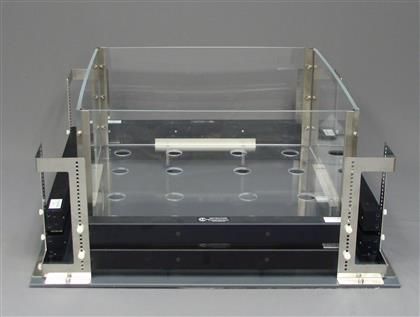

General Information A special adaptation of the Opto Max Activity Monitor gives the ability to quantitatively measure exploratory behavior. The typical configuration consists of a hole poke board with nine (9)to sixteen (16) holes lying over horizontal X and Y axis sensors. Above the board are a second set of X/Y axis sensors. Data collected includes frequency and duration of each "nose poke" as well as positional and ambulatory data (distance traveled, zone entries, ambulatory vs. total movement, etc.). System comes inclusive with Windows software (Auto Track) Features / Specifications Each sensor pair equipped with 16 IR beams, 1" (25.4 mm) apart provide high resolution for differentiation between ambulatory and non-ambulatory movements for both rats and mice. Economical! Each single pair of sensors can monitor 1 cage with 16 IR beams or 2 smaller cages with 8 IR beams. Ability to monitor small, as well as large, animal cages (up to 1 m x 1 m). Sensors can be positioned side by side for creating longer sensors (32 or 48 IR beams), one above another to separately measure horizontal and vertical activity or in X-Y configuration.
