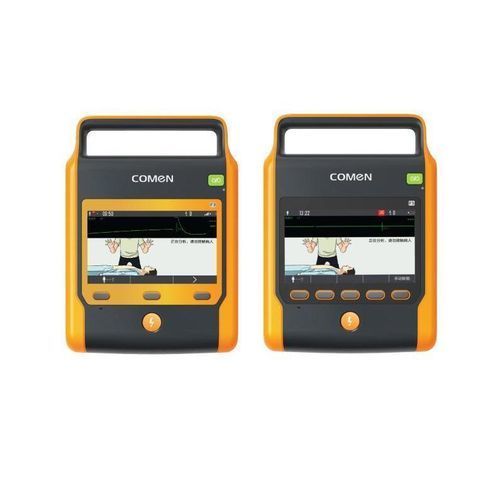

Automatic external defibrillator F3

for public spacefor emergency vehicleswith ECG monitor

Product Overview
F3/F5 is a user-friendly AED that enables fast operation. It is compact and lightweight and integrates AED mode with 3‑lead ECG monitoring. The 7‑inch HD screen provides clear interactive guidance to simplify the rescue process.

Fast and Effective
Every second counts during treatment of VF (ventricular fibrillation). F3/F5 powers up in 2 s, charges to 200 J in less than 4 s and reaches 360 J in 7 s, enabling rapid defibrillation.

Durable Design
Designed to withstand demanding environments: IP55 rated and passed a 1.5 m drop test. Long battery life with proper settings allowing up to a 4‑year lifecycle. A rechargeable battery option is available to reduce maintenance costs. Meets EN1789 and is suitable for use on emergency vehicles.

Features

• 7‑inch large HD interactive display
• Integrated AED mode
• 3‑lead ECG monitoring
• Power up time: 2 seconds
• Fast charging: <4 s to 200 J; 7 s to 360 J
• Maximum energy: 360 J
• IP55 protection rating
• 1.5 m drop tested
• Long battery life (up to 4‑year lifecycle with proper settings)
• Rechargeable battery option
• Complies with EN1789 (suitable for emergency vehicles)

Product Safety and Performance Information
Product documentation is available for detailed safety and performance information.

Specifications

• Model: F3/F5
• Brand: COMEN
• Screen: 7‑inch large HD screen
• Modes: Integrated AED mode
• Monitoring: 3‑lead ECG monitoring
• Power up time: 2 s
• Charging time: <4 s to 200 J; 7 s to 360 J
• Maximum energy output: 360 J
• Ingress protection: IP55
• Drop test: 1.5 m
• Battery: Long‑life design (proper settings allow ~4‑year lifecycle); rechargeable battery option available
• Standards: Meets EN1789 (usable on emergency vehicles)
