Automatic hematology analyzer CH8310

compactbenchtop20-parameter

Overview

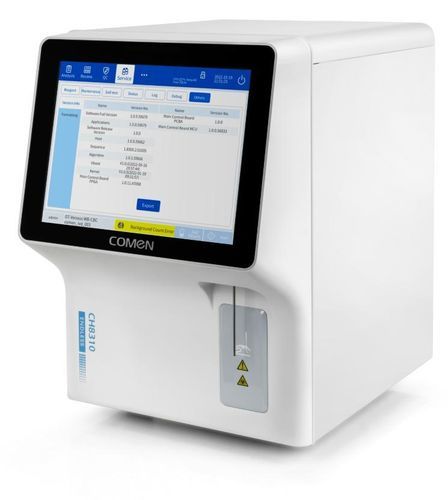

CH8310 is a 3‑part automatic hematology analyzer designed for routine CBC testing in clinical and laboratory environments, combining a compact footprint with intuitive operation.

Core performance

• Throughput: 45 tests per hour (45T/H)
• 20 reportable parameters + 2 research parameters
• Minimum sample volume: 9 μL for CBC counting
• 10.4‑inch capacitive touch screen with an intuitive interface
• One‑click troubleshooting and unclogging functions

User‑centric design & connectivity

• Built‑in lyse storage to save workspace
• Compact, space‑saving design suitable for constrained lab benches
• Multiple printer connectivity options to fit laboratory workflows

Data management

• Storage capacity up to 200,000 records
• 4 USB ports for mouse, keyboard, external printer and barcode scanner
• LAN port for network integration

Operation & maintenance

• Requires only 2 routine reagents and 1 probe cleanser for regular maintenance
• Supports both open and closed reagent systems

Technical specifications

• Model: CH8310
• Analyzer type: 3‑part automatic hematology analyzer
• Throughput: 45 tests per hour (45T/H)
• Parameters: 20 reportable parameters + 2 research parameters
• Minimum sample volume: 9 μL (for CBC counting)
• Display: 10.4‑inch capacitive touch screen
• Maintenance features: One‑click troubleshooting and unclogging
• Reagent system: Supports open & closed systems
• Storage capacity: Up to 200,000 records
• Connectivity: 4 USB ports, LAN port, multiple printer options
• Physical design: Built‑in lyse storage; compact and space‑saving
