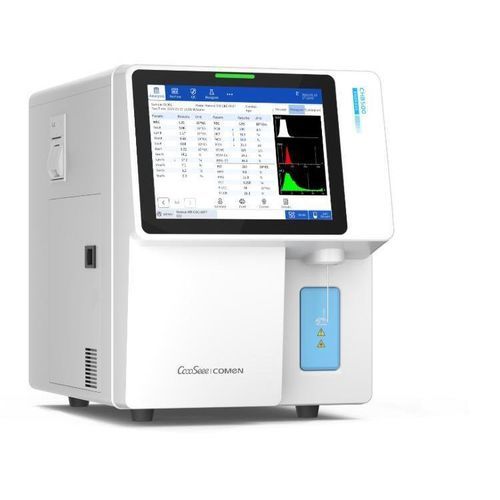

Hospital hematology analyzer CH8500

automaticcompactbenchtop

Overview
CH8500 is a 5‑part differential automatic hematology analyzer with autoloader, designed for compact clinical laboratories that require reliable, medium‑to‑high throughput blood diagnostic capability.

Key features

• Throughput: 70 tests/hour (70 T/H)
• 25 reportable parameters + 23 research parameters
• 5‑part autoloader configuration for automated sample processing
• Measurement technology: microfluidics flow combined with specific staining for accurate cell measurement
• Operating temperature range: 10–35℃

Applications / Positioning
Automatic hematology analysis for clinical laboratories, diagnostic centers and hospital departments that need a compact 5‑part differential analyzer with efficient sample throughput and straightforward maintenance.

Additional features

• 10.4‑inch capacitive TFT touch screen with high resolution
• One‑click troubleshooting and unclogging functions to simplify maintenance
• Compact footprint with built‑in lyse position and integrated lyse storage
• Versatile printing: optional built‑in thermal printer and support for external printers

Technical specifications

• Model: CH8500
• Product type: Automatic hematology analyzer (5‑part autoloader)
• Throughput: 70 T/H
• Parameters: 25 reportable + 23 research
• Measurement technology: Microfluidics flow + specific staining
• Operating temperature range: 10–35℃
• Display: 10.4‑inch capacitive TFT touch screen (high resolution)
• Design: Compact with built‑in lyse position and integrated lyse storage
• Maintenance: One‑click troubleshooting and unclogging functions
• Printing: Optional built‑in thermal printer; support for external printers
