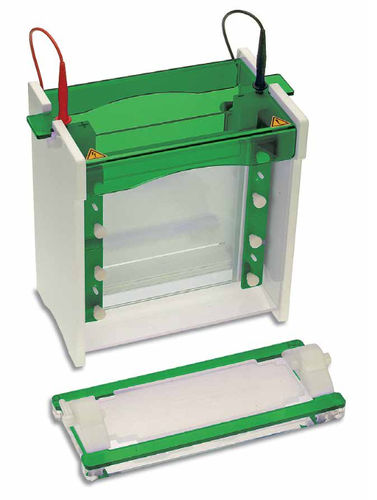

vertical electrophoresis chamber
EVS1300

Add to MyMedicalExpo favorites
vertical electrophoresis chamber vertical electrophoresis chamber - EVS1300
{{requestButtons}}

Characteristics

  • Configuration:

    vertical

Description

Plate dimensions 20x20 cm
Gel dimensions 16x17.5 cm
Number of gels 1 to 4
Buffer volume 1200 ml to 5600 ml
Sample Capacity 192 (48 per gel)
Unit Dimensions 30x18x27 cm
Warranty 12 months

Recommended power supply
EV2650
EV3150
EV3020

EVS1300 is designed to perform a variety of separations, including first- and second-dimension SDS-PAGE, native, preparative, gradient and high-resolution nucleic acid electro-phoresis, plus capillary tube gel IEF and electro-blotting.

By introducing innovative, new vertical leak-free casting with vertical screw-pin technology only four screws are now necessary to secure as many 20x20 cm gels. Glass plates compress gently against a flat, level gasket to prevent current leakage from the inner buffer chamber during electrophoresis.

Detachable inner cooling coil connects to the laboratory water supply or a recirculating chiller to provide uniform, smile-free electrophoresis, while allowing runs to be performed at higher voltage. 4 mm thick glass plates reduce breakage and have bonded spacers for added convenience. Prep combs can be used to maximize sample loading and recovery. Accessory electro-blot-ting and tube gel modules are available which use the same outer tank and lid.
