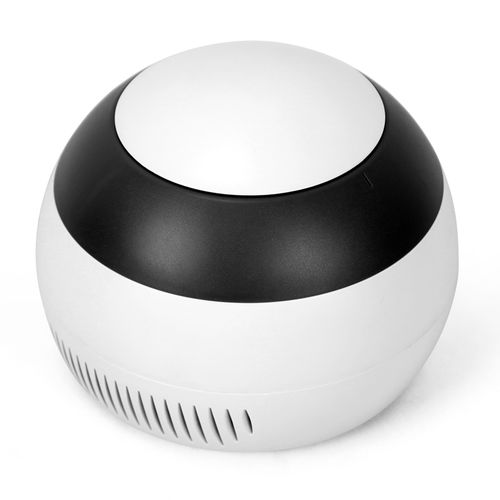

Electronic nebulizer N101J

pediatricfor general purposesfor respiratory

NE-J01VET is a Compressor Nebulizer for pets. The compressor and nebulizer components turn the medication into small size particles by compressing air. According to the Venturi effect, when the compressed air generated by compressor blows to the nozzle under the baffle, a negative pressure acts between the nozzle and the straw to force the medication go up. The liquid medicine sucked up hits the upper baffle to form tiny mist particles, and then erupt outwards. As the atomized particles are tiny, which can be easily penetrated into the lung and capillaries along with breathing to treat the respiratory diseases, mild administration mode, low stress and direct absorption，Mainly used to treat respiratory diseases. Function ◆ One-button operation. ◆ Liquid nebulization function. ◆ Adjustable nebulization rate. Performance ◆ Power supply: Alternating Current ◆ Nebulization rate: ≥ 0.20 mL/min ◆ Residual volume: ≤ 0.5mL ◆ Noise: ≤ 65 dB (A) ◆ Gas flow: > 7 L/min ◆ Maximum pressure: 200 ~ 450 kPa ◆ Median particle diameter: 2.8 μm, error: ≤ ± 25 % ◆ Equivalent volume particle diameter distribution: the proportion of particle diameter below 5 μm is not less than 70 % ◆ Cup capacity: 8 mL ◆ Safety class: class Ⅱ equipment, type BF applied part ◆ The degree of waterproof and dustproof: IP22 ◆ Mode of operation: continuous operation Operation environment ◆ Temperature: 5 ℃ ~ 40 ℃ ◆ Relative humidity: 15 % ~ 90 % ◆ Atmospheric pressure: 700 hPa ~ 1060 hPa Accessories ◆ One User Manual ◆ One set of nebulization accessory ◆ Two fuses ◆ One bag (5) of filter cotton Physical characteristic Dimension: about 160 mm × 161 mm × 107 mm Weight: about 1.42 kg
