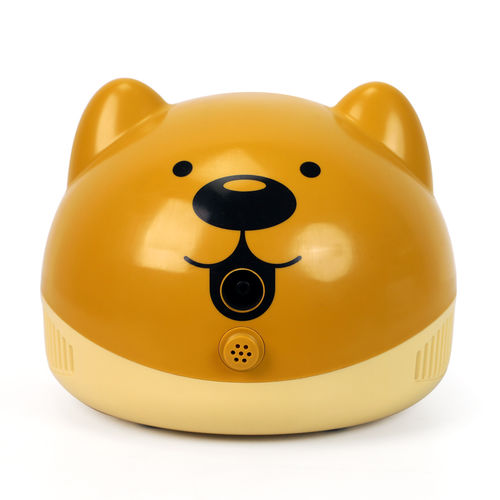

Electronic nebulizer NE-M02

pediatricfor general purposesfor respiratory

The device drives the liquid medication to spray to small panel by the high-speed air flow produced by the compressor, then the liquid medication will change into atomized particles which are spurted out by the outlet. The tiny medication particles easily arrive lung and bronchus along with breathing, which are directly absorbed by human body, features in less medication amount. It is applicable for use in hospital, clinic and family. Functions ● One-button operation. ● Liquid nebulization function. ● Power indication function. ● Adjustable nebulization rate. Performance ● Power supply: Alternating Current ● Nebulization rate: ≥ 0.20 mL/min ● Maximum pressure: 200 ~ 450 kPa ● Median particle diameter: 2.8 μm, error: ≤ ± 25 % ● Equivalent volume particle diameter distribution: the proportion of particle diameter below 5 μm is not less than 70 % ● Cup capacity: 8 mL ● Safety class: class Ⅱ equipment, type BF applied part ● The degree of waterproof and dustproof: IP22 ● Mode of operation: continuous operation Operation environment ● Temperature: 5 ℃ ~ 40 ℃ ● Relative humidity: 15 % ~ 90 % ● Atmospheric pressure: 700 hPa ~ 1060 hPa Accessories ● One User Manual ● One set of nebulization accessory ● One bag (5) of filter cotton ● Two fuses
