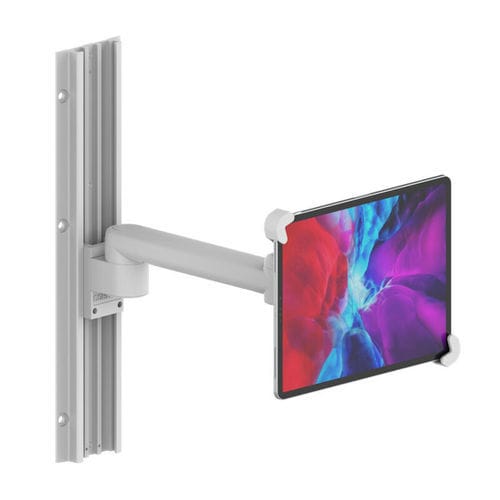

Tilting support arm WM500

swivelfor tablet PCmedical

Product overview
This CORITON mounting arm is designed for medical tablet (PAD) applications in hospitals, outpatient clinics, emergency departments, diagnostic areas and mobile clinical workflows. It provides stable device support, organized accessory integration and smooth movement between care areas. The WM500 supports OEM/ODM integration for medical trolleys and mounting projects requiring practical installation, durable structure and concealed cabling.

Tablet wall bracket Specification

• Compatible tablet size: 11–15 inch
• Arm length: 353 mm
• Channel: Standard Channel 320 mm
• Swivel range: ±90°
• Tilt range options: 0 ~ -25° or 0 ~ -120°
• Total arm maximum load: 30 kg
• Tilt mechanism maximum load: 15 kg
• Concealed cabling: Yes
• Color: Medical White
• Material: Aluminum Alloy

Recommended accessories

• Tablet anti-theft clip - B001-07672 / COR-0051-Umedwings
  • Size: length 294–377 mm (11–15 inches)
  • Key self-locking, anti-theft

Basic Information (table)
Model: WM500
Channel: Standard Channel 320 mm
Arm length: 353 mm
Basket: Optional
Swivel range: ±90°
Tilt range: 0 ~ -25° or 0 ~ -120°
Total arm maximum load: 30 kg
Tilt mechanism maximum load: 15 kg
Concealed cabling: Yes
Color: Medical White
Material: Aluminum Alloy

Technical specifications

• Model: WM500
• Compatible device size: 11–15 inches
• Arm length: 353 mm
• Channel: Standard Channel 320 mm
• Basket: Optional
• Swivel range: ±90°
• Tilt range options: 0 ~ -25° or 0 ~ -120°
• Total arm maximum load: 30 kg
• Tilt mechanism maximum load: 15 kg
• Concealed cabling: Yes
• Color: Medical White
• Material: Aluminum Alloy
• Recommended accessory: Tablet anti-theft clip (length 294–377 mm, key self-locking)
