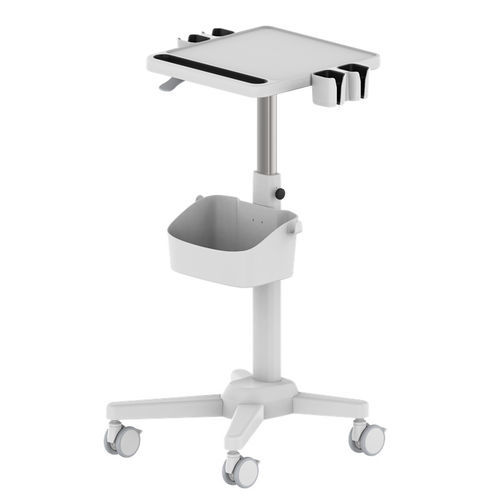

Hospital trolley RS008

for ultrasound systemstransportstorage

Product Overview
CORITON RS008 is an ultrasound trolley engineered for clinical environments such as hospital wards, outpatient rooms, emergency departments and mobile diagnostic workflows. It provides stable device support, accessory organization and smooth relocation between care areas. The design supports OEM/ODM integration for medical trolley and mounting projects that require straightforward installation and clean equipment integration.

RS008 Specification (summary)

• Model: RS008
• Brand: CORITON
• Table bracket Max load: 10 kg
• Basket Max load: 2 kg
• Height adjustment: 688 - 1128 mm
• Caster: 3 in (with brake)
• Material: Aluminum, Steel plate, ABS/PC

Recommended accessories

• Probe Cup Holder - B015-10193 / COR-0052 - Umedwings
  • Size: φ27 mm
  • Depth: 80 mm
  • Material: ABS
• Bin with cable hooks
  • Dimensions: 340 × 213 × 149 mm
  • Material: ABS
• ABS tabletop 430 × 400 mm - A016-11066 / COR-0044 - Umedwings
  • Positioning pads included
  • Material: Integral-molded ABS
  • Overall dimensions: 430 × 400 mm (L × W)
  • Effective working area: 343 × 379 mm
• ECG Cable Arm - B001-07887 / COR-0000 - Umedwings
  • Material: Aluminum Alloy
  • Surface finish: Surface anodic oxidation - Silver

Product Description
The RS008 combines an aluminum and steel structure with ABS/PC components for a balance of rigidity and cleanability. Height adjustment is operated via a handheld gas-spring lift to position equipment ergonomically. Lockable casters enable controlled movement and secure positioning during procedures. Dedicated holders and cable hooks reduce setup time and improve probe and cable management.

Features / Technical specifications

• Model: RS008
• Brand: CORITON
• Table bracket Max load: 10 kg
• Basket Max load: 2 kg
• Height adjustment: 688 - 1128 mm
• Caster: 3 in (with brake)
• Material: Aluminum, Steel plate, ABS/PC
