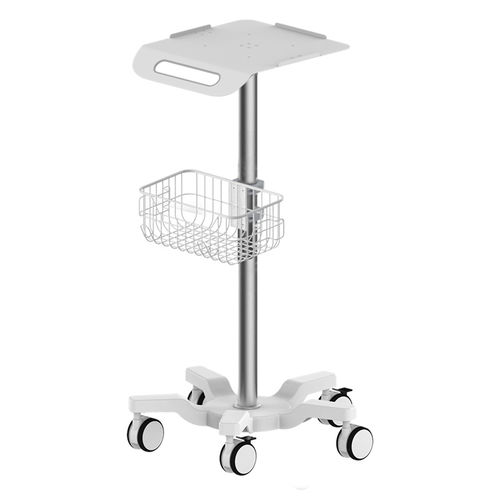

Medical trolley RS011C-100-XX

for ultrasound systemsfor ECGtransport

Product overview
CORITON RS011C is an ECG trolley designed to support ECG machines and related devices. It is suitable for hospital wards, outpatient rooms, emergency departments, diagnostic areas and mobile clinical workflows where stable device support, organized accessory storage and reliable movement between care areas are required. The trolley is also suitable for OEM/ODM integration projects requiring simple installation, durable structure and clean equipment layout.

Specification (Product detailed information)

• Height: 1000mm
• Pole: Ф50±1mm Aluminum Alloy
• Base: Ф520mm Aluminum Alloy
• Caster: two locking and three non-locking
• The cart maximum load: 7Kg

Basic Information (table)
Height: 1000mm
Pole: Ф50±1mm Aluminium Alloy
Base: Ф520mm Aluminium Alloy
Caster: two locking and three non-locking
The cart maximum load: 7Kg
Basket: 335*215*143mm, Environment-friendly iron
Basket bearing: 2kg
Product weight: 5.0 ±0.3kg
Desktop size: 420*400mm, Aluminum alloy
Application: ECG, Ultrasound, Laptop

Recommended accessories

• ABS tabletop 430*400mm - A016-11066 / COR-0044 - Umedwings
  • Positioning pads included.
  • Material: Integral-molded ABS.
  • Overall dimensions: 430 × 400 mm (L × W).
  • Effective working area: 343 × 379 mm.
• Desktop - 420*400mm - B016-05063 / COR-0014 - Umedwings
  • Material: Aluminum alloy.
  • Size: 420*400mm.
• ECG Cable Arm 2
  • Material: Aluminum Alloy, ABS/PC.
  • Surface finish: anodic oxidation - Silver.
• ECG Cable Arm 3
  • Material: Aluminum Alloy, ABS/PC.
  • Surface finish: anodic oxidation - Silver.
• ECG Cable Arm - B001-07887 / COR-0000 - Umedwings
  • Material: Aluminum Alloy.
  • Surface finish: anodic oxidation - Silver.
• ECG Cable Arm 4
  • Material: Aluminum Alloy, ABS/PC.
  • Surface finish: anodic oxidation - Silver.
• Bin with cable hooks
  • Dimensions: 340*213*149mm.
  • Material: ABS.
• Basket
  • Dimension: 285*158*148mm.
  • Material: Steel.
• Basket with Cord Wrap and Cable Hooks
  • Dimensions: 325*215*143mm.
  • Material: Steel.
  • Maximum load: 3kg.

Technical features

• Height: 1000mm
• Pole: Ф50±1mm Aluminum Alloy
• Base: Ф520mm Aluminum Alloy
• Caster: two locking and three non-locking
• Maximum cart load: 7Kg
• Basket dimensions: 335*215*143mm, material: environment-friendly iron
• Basket bearing: 2kg
• Product weight: 5.0 ±0.3kg
• Desktop size: 420*400mm, Aluminum alloy
• Application: ECG, Ultrasound, Laptop
