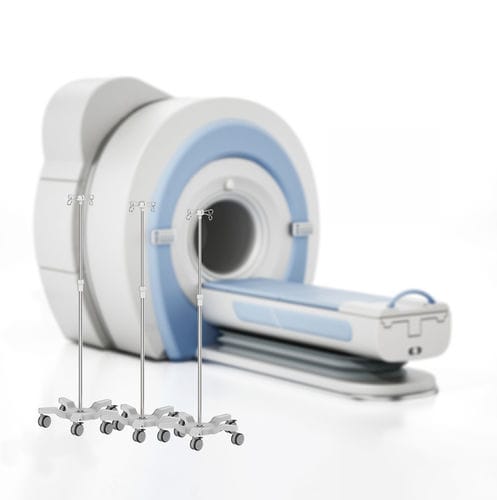

IV pole on casters RS011E-100-03

4-hooknon-magneticstainless steel

Product overview
CORITON RS011E-100-03 is a non-magnetic infusion pump trolley designed for MRI environments and compatible with infusion syringe pumps. It is intended for hospital wards, outpatient clinics, emergency departments, diagnostic areas and mobile clinical workflows where secure device mounting, organised accessory storage and safe repositioning between care areas are required. The trolley supports OEM/ODM integration projects requiring straightforward installation, durable construction and tidy equipment routing.

Specification (summary)

• Height adjustment: 1450-1900 mm
• Trolley size (W×D×H): 520 × 520 × 1900 mm
• Adjustment method: Manual lift
• Materials: Aluminum alloy, stainless steel, copper
• Maximum cart load: 8 kg
• Total hook load capacity: 4 kg (single hook 2 kg)
• Caster configuration: 5 casters (2 locking, 3 non-locking)

Recommended accessories

• Bin with cable hooks
  • Dimensions: 340 × 213 × 149 mm
  • Material: ABS
• Basket
  • Dimensions: 285 × 158 × 148 mm
  • Material: Steel
• Handles and trays
  • Material: ABS
  • Designed for use with infusion stand

Basic Information (table)
Height adjustment : 1450-1900mm
Trolley Size : 520*520*1900mm
Adjust Way : Manual lift
Material : Aluminum alloy + Stainless steel + copper
The cart maximum load : 8kg
Hook load : 4kg (single hook 2kg)
Caster : two locking and three non-locking

Technical features / specifications

• Model / Series: RS011E-100-03
• MRI compatibility: non-magnetic design suitable for MR environments
• Height adjustment range: 1450-1900 mm
• Trolley footprint: 520 × 520 mm; overall height 1900 mm
• Adjustment method: Manual lift mechanism
• Primary materials: Aluminum alloy, stainless steel, copper
• Maximum cart load: 8 kg
• Total hook load capacity: 4 kg (single hook 2 kg)
• Caster setup: five casters, two with locks
