Emergency trolley RS011C-09692

hospitalMRIfor medical monitors

Overview

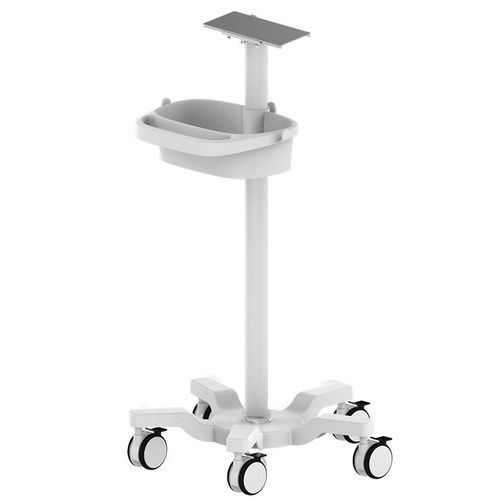

CORITON RS011C is a patient monitor trolley designed for MRI solutions and general clinical use. It is intended for wards, outpatient rooms, emergency departments, diagnostic areas and mobile clinical workflows where stable device support, organised accessories and controlled movement are required.

Key specifications

• Model / Series: RS011C
• Trolley height: 1000 mm
• Pole / Post: Φ50±1 mm aluminum alloy
• Base: Φ520 mm aluminum alloy
• Casters: two locking and three non-locking
• Total trolley maximum load: 7 kg
• Basket dimensions: 335 x 215 x 143 mm (ABS)
• Basket maximum load: 2 kg
• Product weight: 5.0 ±0.3 kg
• Package size: 80 x 80 x 20 cm (2 PCS in 1 carton)

Recommended accessories

• Perforated Universal Mounting Plate - A018-03317 / COR-0011 - Umedwings
• Nihon Kohden Normal M-plate - A001-03395 / COR-0049 - Umedwings
• Biolight A.V.M-Series Mounting Panel - A018-03643 / COR-0010 - Umedwings
• Biolight A-Series Mounting Panel - A018-03322 / COR-0033 - Umedwings
• Biolight S10 Mounting Panel - B018-05600 / COR-0032 - Umedwings
• Colin mounting plate - A018-09866 / COR-0023 - Umedwings
• Adapter Mindray N12/N15/N17 - A018-03444 / COR-0015 - Umedwings
  • Adapter models: Mindray N12 / N15 / N17 / EPM15 / M12
• Adapter Mindray VS600/VS900 - B018-05615 / COR-0020 - Umedwings
  • Material: ABS / Aluminum alloy
• Adapter Mindray IPM/UMEC/IMEC - B018-05614 / COR-0012 - Umedwings
  • Material: ABS / Aluminum alloy
• Adapter Mindray IPM/UMEC/IMEC - B018-05610 / COR-0017 - Umedwings
• Philips MP40/50/60 Mounting Plate - B001-07727 + A018-03451 / COR-0022 - Umedwings
  • For Philips MP40/50/60 monitors
  • Material: Aluminum alloy
• Desktop - 420 x 400 mm - B016-05063 / COR-0014 - Umedwings
  • Material: Aluminum alloy
  • Size: 420 x 400 mm
• ABS tabletop 430 x 400 mm - A016-11066 / COR-0044 - Umedwings
  • Positioning pads included
  • Material: integral-moulded ABS
  • Overall dimensions: 430 x 400 mm (L x W)
  • Effective working area: 343 x 379 mm

Compatibility & installation
The trolley supports OEM/ODM mounting projects requiring practical installation and durable structure. It is compatible with a range of dedicated mounting plates and adapters listed above to fit common patient monitor models. Installation points and accessory interfaces are designed for straightforward integration in clinical workflows.

Packaging & logistics

• Product weight: 5.0 ±0.3 kg
• Basket maximum load: 2 kg
• Package size: 80 x 80 x 20 cm (2 PCS in 1 carton)
• Shipping configuration: two units per carton
