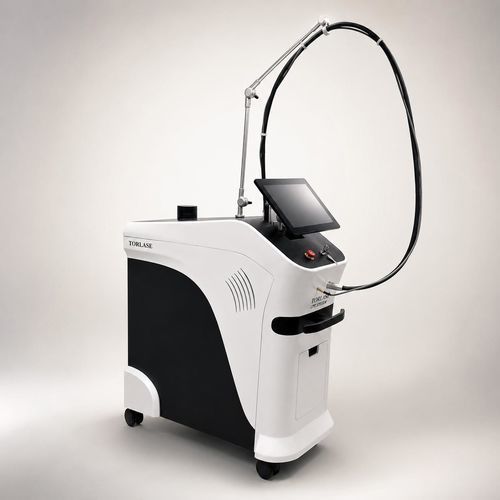

Hair removal laser TORLASE

skin rejuvenationvascular lesion treatmentpigmented lesion treatment

Short description
TORLASE, a US FDA-cleared Alexandrite and Nd:YAG laser system, is a dual-wavelength platform enabling aesthetic and clinical treatments across all Fitzpatrick skin types with selectable 755 nm and 1064 nm wavelengths.

Detailed description
TORLASE combines 755 nm (Alexandrite) and 1064 nm (Nd:YAG) long-pulse modalities in a single system to allow wavelength selection according to patient skin type and clinical indication. The design targets efficient treatment delivery with large spot-size capability, a broad voltage range for international use, and features that simplify maintenance and clinical workflow.

Performance and Features

• Universal voltage compatibility: Operates on 100–240 V without local electrical modifications or transformers.
• Ergonomic display: Twistable monitor for adaptable positioning during procedures.
• Accessible maintenance: Water tank with easy access and built-in water level indicator shown on the monitor.
• Treatment speed: Repetition rates up to 10 Hz to reduce session time.
• Pulse and fluence: Short pulse durations down to ~2 ms and high fluence capability maintained at large spot sizes (including 24 mm and 26 mm).
• Clinical versatility: More than 30 indicated applications including hair removal, tattoo removal, skin rejuvenation, vascular and pigmented lesion treatments, and non-ablative tightening.
• Regulatory/quality: US FDA-cleared; ISO 13485:2016 referenced.

Alexandrite Laser (755 nm)
The long-pulse 755 nm Alexandrite option delivers deeper dermal penetration suitable for lower Fitzpatrick phototypes while minimizing thermal impact to surrounding tissue.
Clinical applications

• Laser hair removal (optimally effective on lower Fitzpatrick phototypes)
• Treatment of pigmented lesions such as solar lentigines and age spots

Nd:YAG Laser (1064 nm)
The long-pulse 1064 nm Nd:YAG option provides deep dermal penetration with enhanced safety for higher Fitzpatrick phototypes and versatile indications.
Clinical applications

• Laser hair removal (optimally effective on higher Fitzpatrick phototypes)
• Treatment of vascular lesions, including telangiectasia and spider veins
• Non-ablative skin tightening procedures

In Summary
The selectable dual-wavelength long-pulse approach enables targeted thermal interaction with structures such as hair follicles and vascular lesions while preserving adjacent tissue. TORLASE integrates large spot-size options and clinical controls to support efficient protocols across skin types.

Technical specifications

• Wavelengths: 755 nm (Alexandrite) and 1064 nm (Nd:YAG)
• Spot sizes: from 1.5 mm up to 26 mm (including 24 mm and 26 mm)
• Pulse duration: short pulses down to approximately 2 ms
• Repetition rate: up to 10 Hz
• Fluence: high fluence maintained at larger spot sizes (manufacturer claim)
• Voltage compatibility: universal 100–240 V
• Cooling/maintenance: accessible water tank with built-in water level indicator displayed on monitor
• User interface: twistable monitor for ergonomic positioning
• Clinical versatility: more than 30 indicated applications including hair removal, tattoo removal, skin rejuvenation, vascular and pigmented lesion treatment, non-ablative tightening
• Regulatory/Quality: US FDA-cleared; ISO 13485:2016 referenced
• Intended use: applicable across all Fitzpatrick skin types with wavelength selection per skin type
