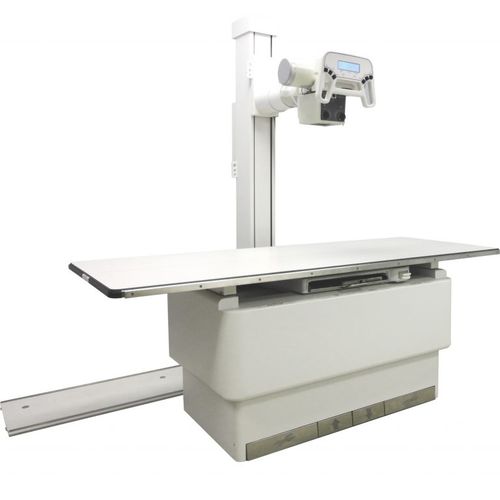

Digital X-ray system DFMT

for multipurpose radiography

Our Digital Floor Mounted Tubestand (DFMT), elevating table and wallstand combinations provide excellent imaging flexibility and value for orthopedic and urgent care center needs. Product Details: Generator: kVp Range: 150 mA Range: 800 (up to 1000 mA with 80kW Generators) Dual Speed Starter: Standard Anatomical Programing: Optional Power Output: 50kW: Optional 65kW and 80kW Available Floor Mounted Tube Stand : 10' (305cm) Longitudinal rail Transverse Travel 8.5" (21cm) Vertical Travel 96" (243cm) Longitudinal travel: 120 in. (305 cm) Tube angulation:±135 degrees Column rotation of +/-180 degrees (where installation permits) Column height: 88.50 in. (225 cm) Control Buttons for Longitudinal, transverse, vertical and column rotation lock. Centering detent aligns focal spot to image detector Elevating Table : Table Top: Four-way float w/ electromagnetic brakes Fiber Resin Composite Table Top Dimensions: (L x W) 84" x 30" (203 x 76 cm) Variable Height from 23" (58cm) to 34" (86 cm) Table Top Movement: Longitudinal: +/- 30" (76 cm) Transverse: +/-10", (25 cm) Patient Loading Capacity: 650 lbs (295kg) Recessed foot treadles Options: 76" length and 35.5" width table-top Table-side hand switch Hand grips
