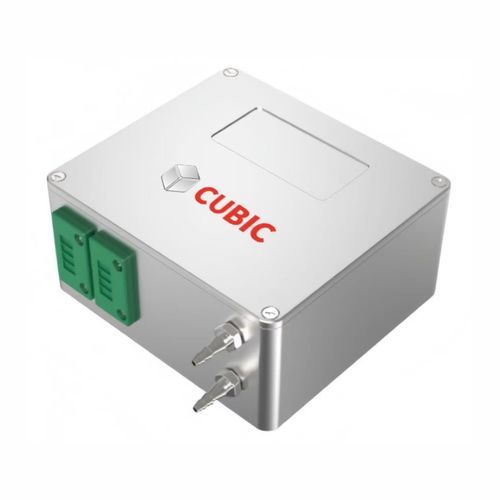

CO2 sensor Gasboard-2513

O2medicalTDLAS

Product Overview
Gasboard-2513 is an O2/CO2 dual gas sensor developed for medical respiratory applications, utilizing TDLAS technology for oxygen measurement and NDIR technology for carbon dioxide measurement within a single sensor module. It delivers ultra-high selectivity, strong resistance to cross-gas and humidity interference, and a fast response time of < 200 ms, supporting real-time monitoring under rapidly changing respiratory conditions.

Gasboard-2513 features calibration-free and maintenance-free operation, superior vibration resistance, and long-term measurement stability, ensuring reliable performance across different clinical and operating environments.

With a compact modular design, ultra-low power consumption, and standard digital interfaces, Gasboard-2513 can be easily integrated into ventilators, anesthesia machines, metabolic analyzers, and CPET systems, enabling simultaneous and stable O2 and CO2 monitoring for both steady-state and dynamic respiratory measurements.

Features

• Combined NDIR (Non-Dispersive Infrared) and TDLAS (Tunable laser absorption spectroscopy) technologies
• Accurate O2 and CO2 measurement with ultra-high selectivity
• Stable long-term performance with extended service life
• High resistance to vibration and electromagnetic interference
• Maintenance-free and calibration-free operation
• Modular design for easy integration into medical equipment

Specifications

• Detection Principle: O₂: TDLAS (Tunable Diode Laser Absorption Spectroscopy) technology; CO₂: NDIR (Non-Dispersive Infrared) technology
• Detection Range: O₂: 0–100 %VOL; CO₂: 0–10 %VOL
• Accuracy①: O₂: ±1 %FS + 2 %reading; CO₂: ±0.1 %Vol @ 0–5 %Vol ±3 %reading @ 5–10 %Vol
• Resolution: O₂: 0.01 %Vol; CO₂: 0.0001
• Warm-up Time: O₂: ≤5 min @ 25 °C; CO₂: ≤2 min @ 25 °C
• Working Temperature: O₂: 0–50 °C; CO₂: 0–50 °C
• Working Humidity: O₂: 0–98 %RH (non-condensing); CO₂: 0–98 %RH (non-condensing)
• Response Time: O₂: 200 ms @ 250 mL/min (T10–T90); CO₂: 300 ms @ 300 mL/min (T10–T90)
• Power Supply: O₂: 5 V ±5 %; CO₂: 5 V ±5 %
• Operating Current: O₂: ≤150 mA (typical 100 mA); CO₂: Pulse current:
• Output Interface: O₂: TTL (3.3 V); CO₂: TTL (3.3 V)
• Storage Conditions: O₂: −40~85 °C; 0~98 %RH (non-condensing); CO₂: −40~85 °C; 0~98 %RH (non-condensing)
• Flow Range: O₂: < 500 mL/min; CO₂: 100–400 mL/min
• Lifetime: O₂: ≥10 years; CO₂: ≥10 years

①: Accuracy is guaranteed only after sufficient warm-up.
