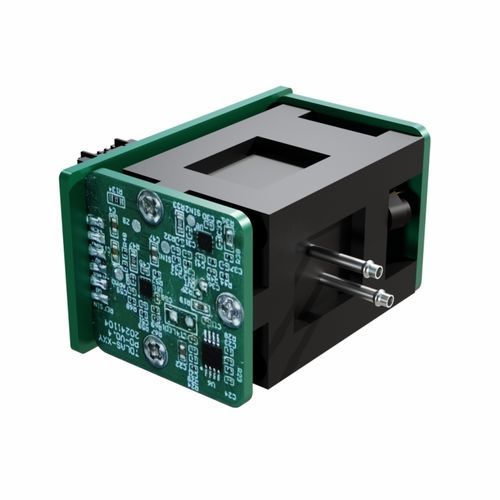

Oxygen sensor Gasboard-2512

O2medicalmonitoring

Overview
Gasboard-2512 is a compact oxygen sensor developed for accurate oxygen measurement in medical applications. Based on tunable diode laser absorption spectroscopy (TDLAS) technology, Gasboard-2512 achieves ultra-high selectivity for accurate oxygen detection with excellent resistance to interference from other gases and moisture. It also delivers a fast response time, enabling real-time monitoring in dynamic environments.

With calibration-free operation, vibration resistance, and no maintenance requirements, Gasboard-2512 ensures long-term stability and maintains accuracy across variable conditions. Its modular design, low power consumption, and standard digital output enable easy integration into high-end ventilators, anesthesia machines, metabolism analyzers, and CPET systems for reliable, real-time oxygen monitoring in both static and dynamic environments.

Features

• Tunable laser absorption spectroscopy (TDLAS) technology for accurate oxygen measurement with ultra-high selectivity
• Fast response time of less than 200ms
• Long lifetime with stable performance
• High resistance to vibration and electromagnetic interference
• Maintenance-free and calibration-free operation
• Modular design for easy integration into medical equipment
• Additional CO2 modules can be integrated as an option

Specifications

• Target Gas: Oxygen (O2)
• Detection Principle: TDLAS (Tunable Diode Laser Absorption Spectroscopy) technology
• Detection Range: 0~100% vol.
• Accuracy: ±1%FS+2% reading
• Resolution: 0.01% vol.
• Response Time: 200ms@250mL/min (T10~T90)
• Warm-up Time: 20s
• Working Conditions: 0~ 50℃; 0~98%RH (Non-condensing)
• Storage Conditions: -40 ~ 85℃; 0~98%RH (Non-condensing)
• Outputs: UART (TTL3.3V)
• Power Supply: 5V±5% DC
• Working Current: ≤150mA, Typical: 100mA
• Product Size: L45*W31*H30.5mm
• Lifetime: ≥10 years
