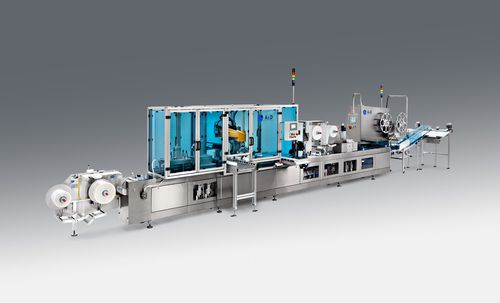

Modular thermoforming machine FFS-S

for pharmaceuticals packagingindustrialfor medical packaging

INNOVATIVE, POWERFUL, MATURE: A PERFECT GENERALIST. The FFS-S is a thermoform machine fulfilling highest demands as well as accounting for a great variety of customer requirements. The FFS-S is equipped with highest-quality components even in its basic configuration. Its frame’s stability is preeminent, providing the basis for a durable machine. According to your requirements, the FFS-S can be supplemented by numerous stations. Jumbo-rolls receiver, cutting and splicing tables and a multitude of cleaning, cutting and packing devices make the FFS-S a real all-round talent. Frame: Stainless steel Cover panel: Stainless steel Film widths: 185 – 600 mm (5 mm gradation) Repeat length: 60 – 1200 mm Deep-draw: up to 190 mm Film material: hard and flexible film Control unit: Siemens S7 Operator panel: Pro-Face TFT Touch Panel 10‘‘ Pneumatic system: Festo Film transportation: two-way clamping chain 5,8“ Lower film reception: Ø 600 mm Upper film reception: Ø 400 mm Lifting station: pneumatic with bell-crank lever Transverse and longitudinal cutting Strip scrap: rewind with diagnostic error system Advance warning film end Film end recognition Splice recognition Print mark control outer web Cut and splice table Multi-foil heating Positive shaping Stamp pre-stretch Printer for top web printing Vacuum and gas supply panel Take-Off sealing station Cutting station Automatic product infeed Filler for liquid and pasty products Automatic packaging re-stacker Lifting stations: pneumatic, pneumo-hydraulic, electromechanic, etc. Alternative control Alternative operator panel Knee-free loading zone Final packaging solutions Integration into production systems Interface coordination
