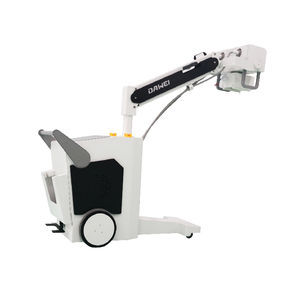

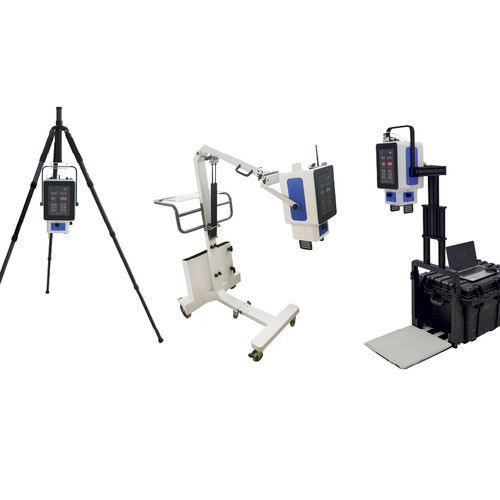

Portable medical diagnostic X-ray equipment
● Gapless Fuel Tank Design
● All-in-One Integrated Design
● Simple system operation
● High frequency rectification technology
● The machine is lighter
● Support DR, CR and film system
● Lower radiation dose
The portable medical diagnostic X-ray equipment adopts the integrated design of X-ray tube, high voltage generator and collimator, which can ensure the minimum failure rate.
■ Application scene
➣ Emergency
➣ Indoor shooting
➣ outdoor shooting
➣ Oversea voyage
■ Parameters
✅ Output Power - 5.3kW
✅ Rated Voltage - 220VAC,±10%,50/60Hz
✅ Inverter Frequency - 100kHz,+/- 5%
✅ kV Range - 40kV-125kV
✅ mA Range - 10-100mA
✅ ms Range - 1 -4000ms
✅ mAs Range - 0.1-200mAs
✅ Focus size - 0.6-1.8
✅ Volume - 450*255*220
✅ Package Size - 540*365*325
✅ Net Weight - 15 kg
✅ Gross Weight - 22kg
