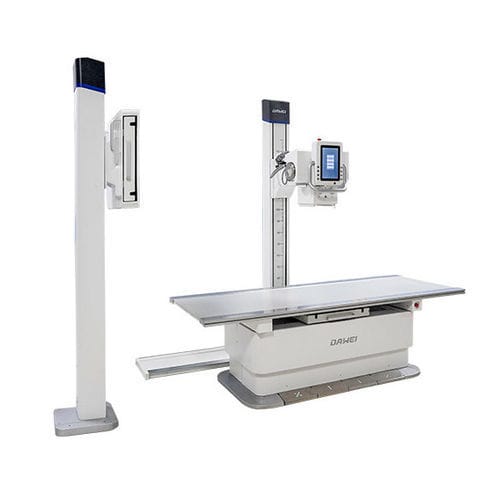

Direct digital X-ray system RD-865Z

DRdigitalfor multipurpose radiography

Overview
RD-865Z is a double-column, floor-mounted digital radiography (DR) system designed for routine radiographic examinations. It provides configurable tube and detector positioning for head, spine, chest, abdomen and limb imaging. The system integrates a 65 kW high-frequency generator and supports wired and wireless 17"×17" flat panel detectors, enabling both stationary and portable workflows.

Key features

• Double-column design for multi-configuration imaging with vertical and horizontal adjustments of tube and detector.
• Six-way floating, frameless radiographic table board for flexible patient positioning.
• 65 kW high-frequency high-voltage generator delivering stable, accurate radiation output.
• Support for 17"×17" amorphous silicon flat panel detectors in wired or wireless versions.
• Integrated Dawei DR image acquisition and processing software for streamlined capture and workflow management.
• 3D positioning indication to simplify patient, tube and detector alignment.
• Supplied with two grid specifications to accommodate different body positions and clinical scenarios.

Accessories

• High-voltage generator — output power: 65 kW.
• Flat panel detectors — 17"×17" imaging area; available wired or wireless for portability.
• Grid — two types/specifications for multi-position radiography.
• X-ray tube assembly — double-focus options: 0.6 mm and 1.2 mm.
• X-ray collimator — manual control, easy installation.

Dawei DR Image Acquisition and Processing Software

• Patient Management: patient registration, worklist and study management.
• Study Operation: body-part selection, study item selection and image acquisition.
• Image Preview & Processing: display, layout, image processing and advanced tools.
• Configuration: system, study and user management including worklist and storage settings.

Clinical use / Imaging capability

• Intended for radiographic imaging of head, cervical and lumbar spine, chest, abdomen, limbs and joints (including knee).
• Provides single-image radiography suitable for routine diagnostic examinations.

Technical specifications

• Model: RD-865Z
• Design: Double-column fixed floor-mounted DR system
• Generator: 65 kW high-frequency high-voltage generator
• Detector: 17"×17" amorphous silicon flat panel detector (wired and wireless options)
• Table: Six-way floating, frameless radiographic table board
• Positioning: 3D positioning indication
• Grids: Supplied with two grid specifications
• X-ray tube: Double focus available (0.6 mm / 1.2 mm)
• Software: Dawei DR image acquisition and processing software (patient management, study operation, image preview/processing, system configuration)
