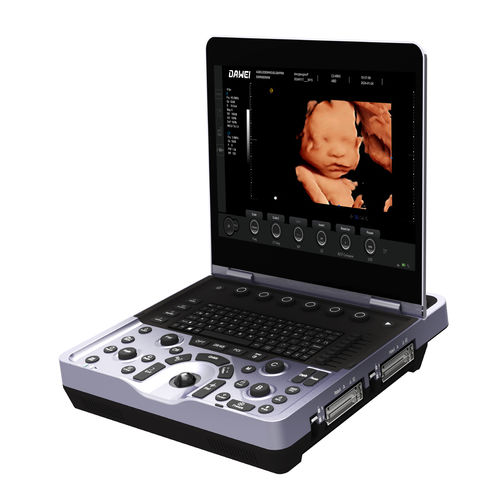

Portable ultrasound system DW-L3S

for multipurpose ultrasound imagingcolor doppler3D/4D

DAWEI Laptop Color Doppler Ultrasound System: L3S Overview • Product Type: Lightweight, portable laptop-style color Doppler ultrasound system. • Use Case: Designed for point-of-care imaging across OB/GYN, MSK, cardiac, vascular, urology, and emergency scenarios—ideal for clinics, bedside, mobile units, and ambulatory care. Design & Workflow Enhancements • Compact metal body with 15.6″ full HD medical-grade display (1920×1080), rotatable up to 180° for flexible viewing. • Dual probe ports and ergonomic control layout streamline workflow. • Features one-touch optimization, auto trace, and customizable presets. • Weighs only 6.5–6.8 kg for easy portability and field diagnostics. Core Specifications • Imaging Modes: B, 2B, 4B, M, Color, PW, Power Doppler, DPDI, CW, THI, SRI, duplex/triplex combinations. • Storage: SSD ≥256 GB; RAM 4 GB; supports cine loop (≥4000 frames). • Battery: Built-in lithium with optional external battery (≥2 hr). • Measurement Packages: OB, cardiac, urology, MSK, vascular, abdomen, with auto IMT and auto measurement. Probe Support & Ports • Probe Types: Convex, linear, phased array, microconvex, transvaginal, transrectal, and CW pencil. • Connectivity: 2 probe ports, video out, USB, HDMI, DICOM 3.0. Workflow & Software • Integrated DAWEI platform for imaging, data management, and reporting. • Supports image zoom, cine playback, annotation, measurements, body marks, and PDF report export.
