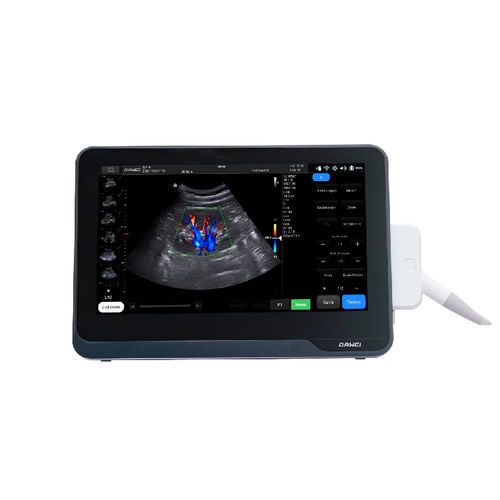

Hand-held ultrasound system DW-M6

for urology ultrasound imagingfor anesthetic and intensive care ultrasound imagingfor musculoskeletal ultrasound imaging

Product overview
DW-M6 is a handheld color Doppler ultrasound scanner with a full multi-touch interface designed for portability and clinical mobility. The device features a cleanable housing and removable probes to facilitate disinfection and flexible use across clinical environments.

Handheld color ultrasound system
The DW-M6 integrates color Doppler imaging into a compact, lightweight chassis with a full touchscreen. It provides clinical-grade imaging in a portable form factor, particularly suited to point-of-care assessments and mobile workflows. The system is optimized for musculoskeletal (MSK) examinations, enabling clear visualization of muscle fibers, tendons and joint anatomy to support guided procedures and sports injury evaluation.

Clinical applications
The DW-M6 is indicated for imaging of the nervous system, musculoskeletal structures and peripheral vasculature. With streamlined workflow and measurement tools, it is commonly used in anesthesiology, rehabilitation medicine, urology, orthopedics, pain management and vascular medicine.

Ultrasound-guided solutions

• Biopsy guidance: speckle noise reduction improves lesion contrast for diagnostic sampling.
• Interventional therapy: B+C duplex mode and expanded field of view support procedures such as cyst aspiration, abscess drainage and tumor ablation.
• Catheterization guidance: supports central venous catheter (PICC/CVC) and drainage tube placement; high-frequency linear probes with rapid zoom provide detailed imaging.

Key features

• Handheld, fully touchscreen design for portable operation.
• Cleanable housing and removable probe/interface design for disinfection.
• Flexible connectivity: wireless and wired options for data transfer and integration.
• DICOM 3.0 support for hospital information system interoperability.
• Fast startup: approximately 30 s boot time and ~1 s standby wake-up.
• Supports long movie recording from external storage devices.

Imaging modes & clinical image capabilities

• Continuous wave (CW) Doppler
• Pulsed wave (PW) Doppler
• Auto IMT (intima-media thickness)
• Spatial compound imaging
• Trapezoidal imaging
• Speckle reduction imaging

Probes (examples)

• Phased array probe
• Linear probe / High-frequency linear probe
• Convex probe

Characteristics / Technical specifications

• Model: DW-M6
• Product type: Handheld color Doppler ultrasound scanner with full touchscreen
• Touchscreen interface: multi-touch operation
• Design: compact, lightweight, cleanable housing with removable probes
• Connectivity: wireless and wired options
• Integration: DICOM 3.0 support
• Startup / standby: ~30 s boot, ~1 s standby wake-up
• Imaging technologies: speckle reduction, spatial compound imaging, trapezoidal imaging, Auto IMT
• Doppler capabilities: CW and PW
• Applications: MSK, nervous system, peripheral vascular, anesthesiology, rehabilitation, urology, orthopedics, pain management, vascular medicine
• Probe compatibility: phased array, linear (including high-frequency), convex
• Image storage: supports long movie recording from external devices
