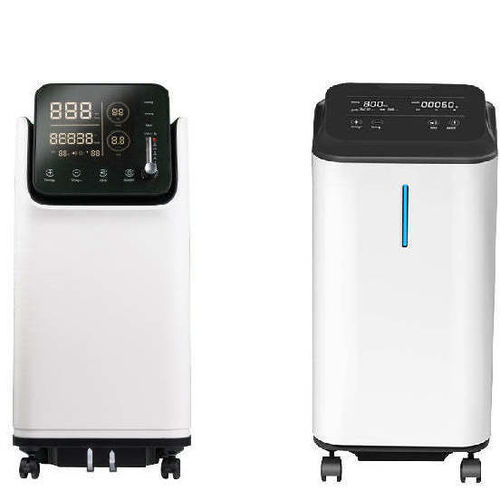

Home care oxygen concentrator ZY-5 series

for home usemedicalportable

Overview
Take clinical control of home oxygen therapy with the Dawei portable oxygen concentrator series ZY-5AW and ZY-5ZW. Designed for domestic and long-term care use, both models deliver continuous medical-grade oxygen (93% ± 3%) with adjustable flow up to 5 L/min. The series integrates nebulization for aerosol therapy, voice control, remote operation and programmable timing to support patient management and caregiver workflows.

Features

• Medical-grade Oxygen Purity — Stable output at 93% ± 3% to support prescribed oxygen therapy.
• Adjustable Continuous Flow — Up to 5 L/min; ZY-5AW: 0.5–5 L/min, ZY-5ZW: 1–5 L/min.
• Integrated Nebulizer — Enables aerosol therapy without additional external devices.
• Voice Control & Voice Broadcast — Hands-free adjustments and audible status messages.
• Low Noise Operation — ≤45 dB for use during sleep and quiet environments.
• Remote Control & Timer — Schedule delivery and operate remotely to simplify care routines.
• Compact, Portable Design — Two size options for mobility and home placement.

What’s in the box?

• Portable Oxygen Concentrator × 1
• Disposable Oxygen Tubing × 1
• Nebulizer Kit × 1
• Remote Control × 1
• Humidifier Bottle × 1
• Oxygen Mask × 1
• Filter Mesh × 1
• Power Cable × 1
• User Manual × 1
• Certificate of Conformity × 1
• Felt Filter Pad × 1

Main specifications (table)
Parameter — Specification
Capacity — 5L
Oxygen Concentration — 93% ± 3%
Noise Level — ≤45 dB
Power Consumption — 400 VA
Power Supply — AC 220V, 50 Hz
Working Environment — 10°C–40°C, ≤80% RH
Dimensions — ZY-5AW: 30.5 × 30.8 × 68 cm; ZY-5ZW: 30 × 31 × 59 cm
Weight — approx. 19–20 kg
Additional Features — Nebulization, Voice Broadcast/Control, Infrared Remote, Timer

Comparison (ZY-5AW vs ZY-5ZW)
Parameters (Unit) — ZY-5AW — ZY-5ZW
Capacity (L) — 5 L — 5 L
Oxygen Flow (Adjustable) (L/min) — 0.5–5 L/min — 1–5 L/min
Oxygen Concentration — 93% ± 3% — 93% ± 3%
Noise Level (dB) — ≤45 dB — ≤45 dB
Weight (kg) — 19 kg — 20 kg
Power Supply — AC 220V, 50 Hz — AC 220V, 50 Hz
Power Consumption (VA) — 400 VA — 400 VA
Dimensions (mm) — 305 × 308 × 680 mm — 302 × 310 × 587 mm (more compact)
Nebulization Function — Available — Available
Intelligent Voice — Available — Available
Timing Function — Available — Available
Remote Control — Available — Available

Technical specifications

• Capacity: 5 L
• Oxygen concentration: 93% ± 3%
• Adjustable oxygen flow: ZY-5AW: 0.5–5 L/min; ZY-5ZW: 1–5 L/min
• Noise level: ≤45 dB
• Power consumption: 400 VA
• Power supply: AC 220 V, 50 Hz
• Working environment: 10°C–40°C, humidity ≤ 80% RH
• Dimensions: ZY-5AW: 30.5 × 30.8 × 68 cm; ZY-5ZW: 30 × 31 × 59 cm
• Weight: approx. 19–20 kg (model dependent)
• Included functions: nebulization, voice broadcast/control, infrared remote, timer
• Package contents: unit, tubing, nebulizer kit, remote, humidifier bottle, oxygen mask, filters, power cable, manual, conformity certificate, felt filter pad
