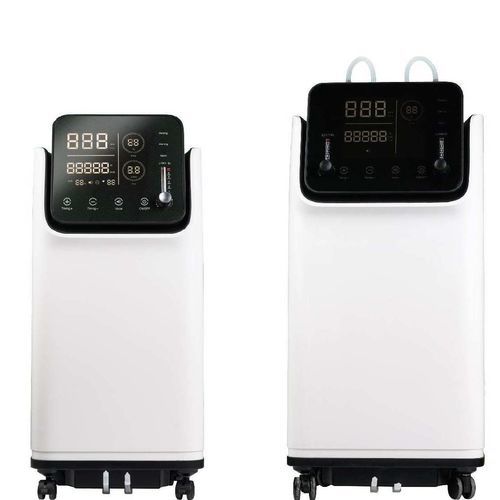

Home care oxygen concentrator ZY-10FW

medicalfor home usecontinuous flow

Overview
Dawei large-capacity oxygen concentrators are designed for home and clinical use, offering models with 5L and 10L output. The 10L model provides ICU-level performance with adjustable flow up to 10 L/min and stable high oxygen purity (93% ± 3%). The units are designed for comfort and usability: low noise operation, built-in nebulizer for combined therapy, and smart controls including voice prompts, remote control and timer functions.

Models

• ZY-10FW — 10L larger capacity
• ZY-5AW — 5L capacity

Key Features

• Adjustable flow rate: 0.5–10 L/min (10L model)
• Stable oxygen purity: 93% ± 3%
• Quiet operation: <60 dB (10L model)
• Built-in nebulizer: supports combined nebulization and oxygen therapy
• Smart control system: voice prompts, remote control and timing function
• ICU-level performance suitable for critical care and continuous home therapy

What’s in the box (ZY-10FW — 10L oxygen concentrator)

• Oxygen tubing × 2
• Humidifier bottle × 2
• Oxygen mask × 2
• Nebulizer kit × 1
• Remote control × 1
• User manual × 1
• Certificate of Conformity × 1
• Filter felt × 1
• Filter mesh × 1
• Power cord × 1

Comparison notes
Both models deliver the same nominal oxygen concentration (93% ± 3%). The 5L model is lighter and quieter (approx. 19 kg, ≤45 dB) whereas the 10L model delivers higher maximum flow and higher power consumption (approx. 29 kg, <60 dB).

Specifications (summary table)
Parameter — ZY-10FW
Oxygen Capacity — 10L
Flow Rate — 0.5–10 L/min
Oxygen Concentration — 93% ± 3%
Noise Level — <60 dB
Weight — 29 kg
Power Supply — AC 220V 50Hz
Power Consumption — 600 VA
Dimensions — 340 × 345 × 725 mm
Nebulization Function — Available
Voice/Timer/Remote — Available

Usage scenarios
Suitable for home oxygen therapy, elderly care, chronic respiratory disease management, small clinics and scenarios requiring continuous or higher-flow oxygen delivery.

Caractéristiques / spécifications techniques

• Model: ZY-10FW (10L) and ZY-5AW (5L)
• Oxygen concentration: 93% ± 3%
• Flow: 0.5–10 L/min (ZY-10FW); 0.5–5 L/min (ZY-5AW)
• Noise: <60 dB (ZY-10FW); ≤45 dB (ZY-5AW)
• Weight: 29 kg (ZY-10FW); 19 kg (ZY-5AW)
• Power supply: AC 220V 50Hz
• Power consumption: 600 VA (ZY-10FW); 400 VA (ZY-5AW)
• Dimensions (ZY-10FW): 340 × 345 × 725 mm
• Nebulizer: built-in (both models)
• Smart features: voice prompts, remote control, timer
