Medical vacuum system 20 - 400 Nm3/h

electronic

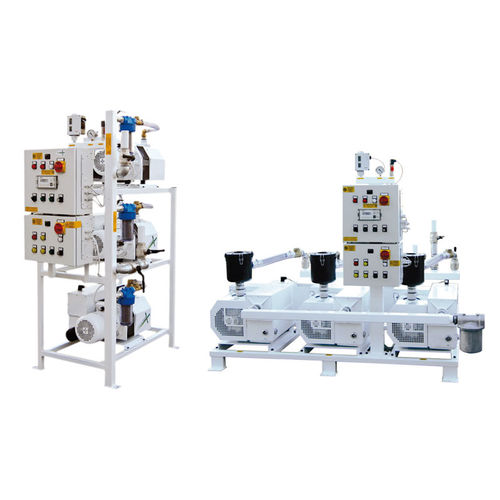

GENERAL DESCRIPTION Vacuum stations for medical use certified in accordance to 93/42/EEC Directive and provided of different shapes according to different requirements. They can be supplied in the following versions: Vertical 3 pumps configuration with vertical tank Horizontal 3 pumps configuration with vertical tank Horizontal tank configuration (3 or 3 pumps) Further configurations available upon request MAIN FEATURES Many different type of configuration depending of the customer needs (2 or 3 pumps on horizontal or vertical configuration, horizontal or vertical tank) Provided with double bacterial filters The whole station is managed by an electronic control panel capable to monitor status and alarms of the system Running hours are shown on the display Fully complying to 93/42/EEC Directive and ISO 7396-1 standard Key features HORIZONTAL HOSPITAL VACUUM STATION 3 pumps horizontal configurations A vertical reservoir complete with a condense exhaust system and two bactericidal filters (UNI EN 7396-1:2007 5.7.1). Designed to meet the normal requirements of the user by operating a single pump. Running hours are shown on the display Compliant with 93/42/EEC Directive, ISO 7396-1, From 220 to 340 Nm3/h for each pump VERTICAL HOSPITAL VACUUM STATION •3 pumps vertical configurations •A vertical reservoir complete with a condense exhaust system and two bactericidal filters IUNI EN 7396-1:2007 5.7.11. •Designed to meet the normal requirements of the user by operating a single pump. •Running hours are shown on the display •Compliant with 93/42/EEC Directive. ISO 7396-1,
