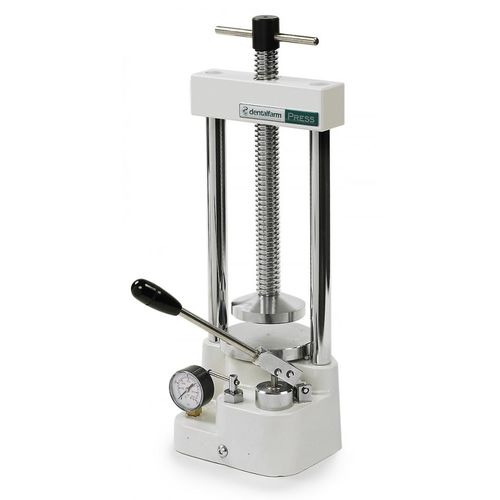

Hydraulic press featuring a pressing lock which allows to accommodate up to three flasks simultaneously.
The hydraulic circuit is leak-proof and no maintenance is required.
Leak-proof hydraulic circuit.
Maximum pressure: 400 BAR
Maximum strength: 15000kg
Overall dimensions: mm 200x20x550h
When the flask is ready, turn the central screw by means of the lever 1 to lift the upper
plate. To carry out this operation, it is necessary that the press is NOT under pressure:
open cock 6 to check it.
Introduce the flask and tighten it between the two plates by means of lever 1.
Close the cock by turning lever 6 clockwise.
Use the lever 4 to put under pressure: after some pumping, the pointer of the pressure
gauge 5 will move until the working pressure is achieved.
The correct pressure exerted on the flasks is 200 bar.
We recommend not to use pressures exceeding 200 bar: a too high thrust may damage the
The construction is leak-proof, therefore no oil must be added. In any case if, during
transport, some oil has leaked, it can be poured in the tank by unloosing the screw of cock
A normal hydraulic oil currently available on the market can be used.
We recommend to keep the press always well clean in order to avoid that either dust or
dirty particles enter the hydraulic circuit.
