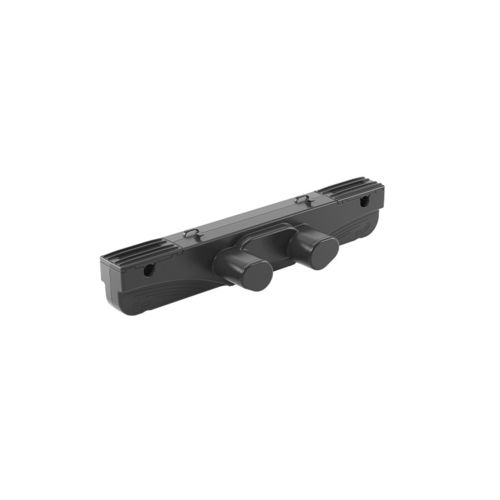

Linear actuator DUOMAT 10

electricmedicalcable

The DUOMAT 10 is a standardized double drive for the EASY DRIVE- drive system with an externally mounted SMPS. Users benefit from the compact and stable design, the high IP protection and the ease of installation. These characteristics make this single-fault-protected double drive especially well-suited for combined head and back section adjustments. It also features IPX4 protection against the ingress of very small contaminants or foreign particles. The double drive stands out with its elegant black housing. The DUOMAT 10 can be connected with two slave drives and a handset. The double drive can also be equipped optionally with an emergency lowering mechanism. Integrated SMPS and plug-in mains cable wide voltage range for global operation Meets eco-design directive (standby power consumption <0.5 W) Stroke length back rest 87 mm, leg rest 69 mm Fitting dimension (B) 581 mm (+/- 3 mm) Duty cycle 2/18 min. or 10%, max. 5 switching cycles per minute input voltage wide input voltage range 100-240 V AC Protection degree IPX4 Protection class II Type of Transformer Switching mode power supply (SMPS) color light grey ,black main cable pluggable main cable, USA, ENG, EU, CHN, AUS… connectivity with 2 single drives,operating elements:1-2
