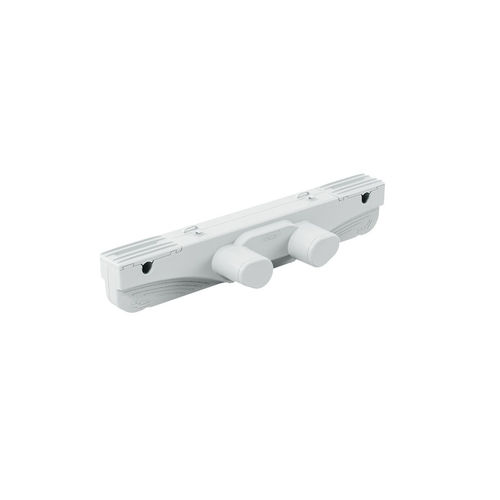

Linear actuator DUOMAT 11

electricmedicalcable

The DUOMAT 11 is a standardized double drive for the EASY DRIVE drive system. This double drive is perfectly suited for combined head and back section adjustments. The DUOMAT 11’s advantages include an integrated SMPS, a high IP protection rating and easy installation. Thanks to its compact stable construction and simple design, the double drive is ideal for use in medical applications. This single-fault-protected unit also has IPX4 protection against the ingress of very small contaminants and foreign particles. The DUOMAT 11 can be connected with two slave drives and a handset. The double drive can also be equipped optionally with an emergency lowering mechanism. Integrated SMPS and plug-in mains cable wide voltage range for global operation Meets eco-design directive (standby power consumption <0.5 W) Stroke length back rest 87 mm, leg rest 69 mm Fitting dimension (B) 581 mm (+/- 3 mm) Duty cycle 2/18 min. or 10%, max. 5 switching cycles per minute input voltage wide input voltage range 100-240 V AC Protection degree IPX4 Protection class II Type of Transformer Switching mode power supply (SMPS) color light grey ,black main cable pluggable main cable, USA, ENG, EU, CHN, AUS… connectivity with 2 single drives,operating elements:1-2
