∙ Up to 2Hz repetition rate (0.5Hz at maximum output)
∙ Full control via USB with TruTrace EMG
∙ Upgradeable to a paired pulse TMS with second MP stimulator
System Overview

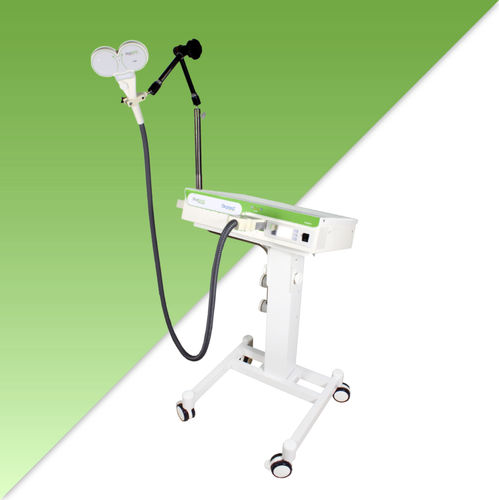

The DuoMAG MP is a single pulse Mono-phasic stimulator used primarily for diagnostic purposes when combined with EMG systems in MEP or collision studies. The major feature of this stimulator is the high-energy pulse (700 Joules per pulse) which is significantly higher than other stimulators that combine Bi-phasic and Mono-phasic pulses in one system. The high energy pulse is neccessary for stimulating the lower extremities in peripheral neuropathies or other related disorders.
System Features
∙Smallest most compact design in class
∙Integrated display for stimulation intensity and simulator status
∙Full control via coils, computer or external TTL
∙Controlable by third-party applications via API (optional)
∙Upgradeable to a paired pulse TMS with second MP stimulator
∙Highest repetitive rate for Mono-phasic high power system
∙Durable and robust design with low-fail rate capacitors
User-friendly Coil Controls
Deymed coils have built-in controls for stimulation and intensity settings. This allows the user full control without needing to avert attention to external panels or triggers. This also allows the TMS system to be used by a single operator.
70BF - Cool
Butterfly Coil 70mm with controls and cooling fans
Typical use:
Focused long-term cortical stimulation, mainly for rTMS. Can be used with the counterweight balanced coil-holder on the MagTower Configuration.
50BF T-shaped
Butterfly Coil DuoMAG 50mm T-shaped
